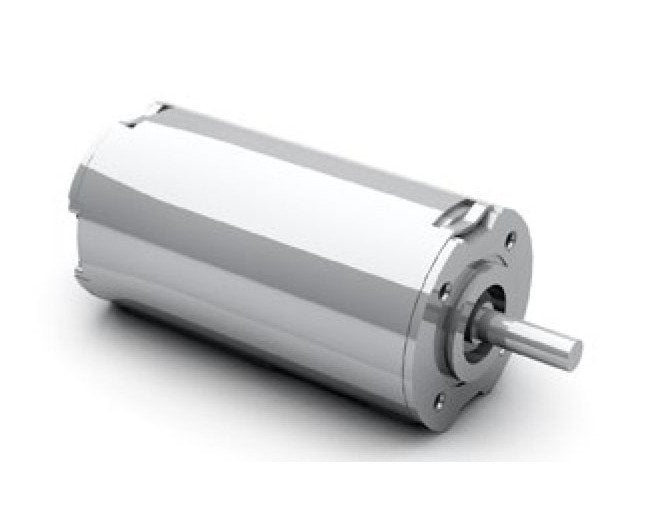

Dunkermotoren BG Series Brushless DC Motor - 6.8A, 60.6W
Dunkermotoren BG Series Brushless DC Motor - 6.8A, 60.6W
SKU:BGS-75c9d6
Experience efficiency and performance with Dunkermotoren BG Series Brushless DC Motor - 6.8A, 60.6W. Ideal for dynamic acceleration and robust design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor - 6.8A, 60.6W
$289.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor - 6.8A, 60.6W
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers unparalleled efficiency and performance with integrated Hall sensors. With a nominal current of 6.8A and nominal output power of 60.6W, this motor delivers highly dynamic acceleration, optimized control characteristics, and robust design. Compliant with UL standards, offering premium efficiency and vibration resistance, it is a maintenance-free solution suitable for diverse applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Demagnetisation Current
⥠53 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
102 W
Technical Specs Maximum Torque
1.02 N·m
Technical Specs Nominal Current
6.8 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
60.6 W
Technical Specs Nominal Speed
3330 rpm
Technical Specs Nominal Torque
0.173 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.47 A
Technical Specs No Load Speed
4530 rpm
Technical Specs Peak Power
27 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Stall Torque
1.02 N·m
Technical Specs Starting Current
30.1 A
Technical Specs Terminal Inductance
0.10 mH
Technical Specs Terminal Resistance
0.14 Ω
Technical Specs Torque Constant
0.029 N·mA-1
Technical Specs Weight Of Motor
0.47 kg
