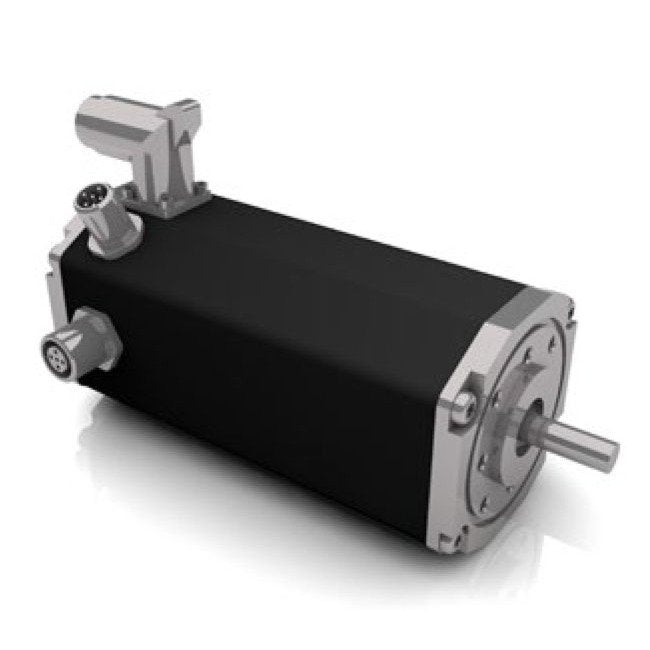

Dunkermotoren BG Series Brushless DC Motor - 7.8A/155W
Dunkermotoren BG Series Brushless DC Motor - 7.8A/155W
SKU:BGS-154c28
Powerful and precise Dunkermotoren BG Series Brushless DC Motor for accurate control applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor - 7.8A/155W
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor - 7.8A/155W
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 7.8 Ampere (A) Nominal Current and 155 Watt (W) Nominal Output Power Brushless DC Motor with Integrated Control Electronics is a versatile and robust motor designed for precise control applications. Featuring field-oriented control (FOC) and an integral magnetic encoder with 4096 cpr resolution, this motor ensures high position accuracy and excellent control characteristics. With advanced features like speed, positioning, and current control operation, along with compatibility with high-resolution encoders, brakes, and gearboxes, this motor offers exceptional performance and flexibility. Moreover, it meets industry standards such as China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), making it a reliable choice for institutional buyers.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
306 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
269 W
Technical Specs Maximum Torque
1 N·m
Technical Specs Nominal Current
7.8 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
155 W
Technical Specs Nominal Speed
3890 rpm
Technical Specs Nominal Torque
0.38 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4620 rpm
Technical Specs Peak Current
16.5 A
Technical Specs Peak Power
732 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.064 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
