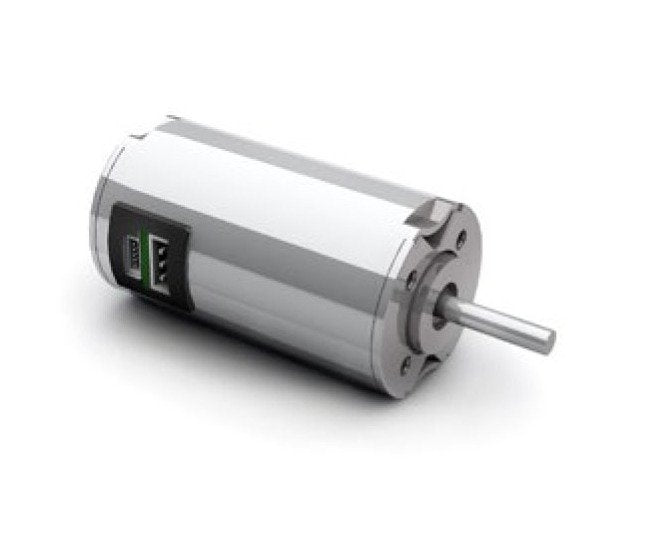

Dunkermotoren BG Series Brushless DC Motor
Dunkermotoren BG Series Brushless DC Motor
SKU:BGS-f5c5f8
Efficient and durable Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors for optimized control and maintenance-free operation.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor
$179.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a highly dynamic 3-phase motor designed for efficiency and durability. With a nominal output power of 20.5W and peak power of 236W, this motor offers optimized control characteristics, wide speed range, and maintenance-free operation. Compliant with industry standards like Underwriters Laboratories (UL), this motor is ideal for applications requiring high efficiency and robust design. Combined with control electronics and gearboxes, it provides a flexible and market-oriented solution.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Demagnetisation Current
⥠16.5 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
34.6 W
Technical Specs Maximum Torque
0.162 N·m
Technical Specs Nominal Current
2.53 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
20.5 W
Technical Specs Nominal Speed
4060 rpm
Technical Specs Nominal Torque
0.045 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.17 A
Technical Specs No Load Speed
5460 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
10.2 g/cm²
Technical Specs Stall Torque
0.162 N·m
Technical Specs Starting Current
10 A
Technical Specs Terminal Inductance
0.37 mH
Technical Specs Terminal Resistance
0.75 Ω
Technical Specs Torque Constant
0.023 N·mA-1
Technical Specs Weight Of Motor
0.20 kg
