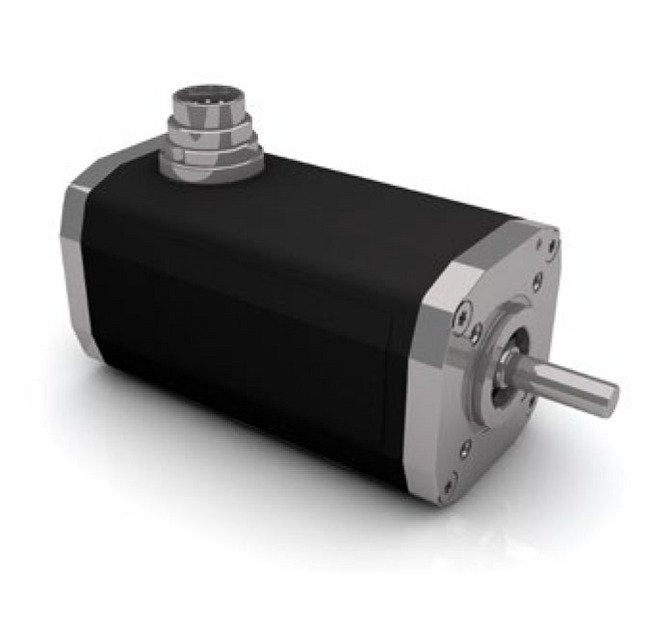

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-78290e
Highly dynamic and efficient Dunkermotoren BG Series Brushless DC Motor with Hall Sensors for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a highly dynamic and efficient motor designed for a wide range of industrial applications. With a nominal output power of 48.4W, this motor offers optimized control characteristics, high power density, and maintenance-free operation. Featuring neodymium magnets and premium efficiency, it ensures a very long lifetime and high overload capability. Compliant with industry standards such as Underwriters Laboratories (UL), this motor is a reliable and robust solution for demanding environments.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
80 W
Technical Specs Demagnetisation Current
⥠29 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
84 W
Technical Specs Maximum Torque
0.745 N·m
Technical Specs Nominal Current
5.66 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
48.4 W
Technical Specs Nominal Speed
3327 rpm
Technical Specs Nominal Torque
0.139 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.6 A
Technical Specs No Load Speed
4340 rpm
Technical Specs Peak Power
156 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Stall Torque
0.745 N·m
Technical Specs Starting Current
34.2 A
Technical Specs Terminal Inductance
0.19 mH
Technical Specs Terminal Resistance
0.28 Ω
Technical Specs Torque Constant
0.0221 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
