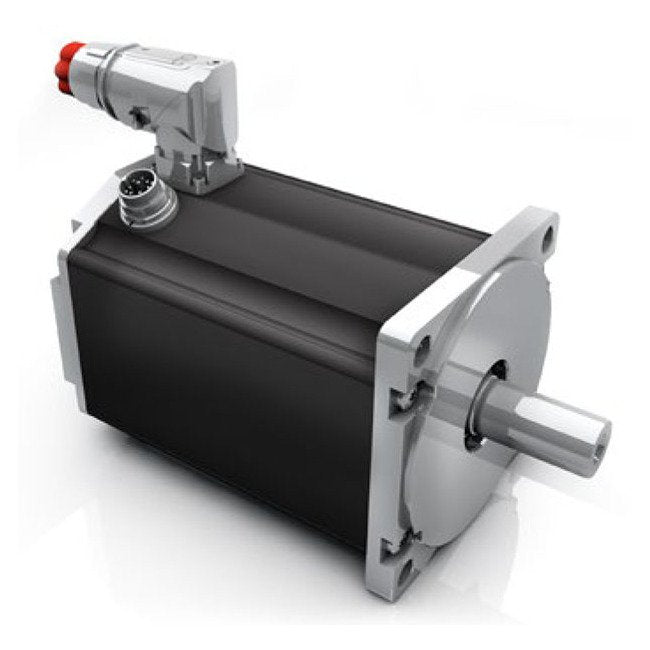

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-9d1ee9
Experience peak efficiency with Dunkermotoren BG Series Brushless DC Motor, ideal for precise control and reliability in institutional applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$799.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers exceptional performance with a nominal current of 16.7A and a nominal output power of 701W. Featuring integrated Hall sensors for rotor position detection, this motor ensures precise control and reliability. With compliance to industry standards like IP65 and certifications such as CQC and UL, this motor guarantees high efficiency, dynamic acceleration, and a maintenance-free operation. Ideal for institutional applications requiring premium efficiency and robust design.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠70 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1649 W
Technical Specs Maximum Torque
6.33 N·m
Technical Specs Nominal Current
16.7 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
701 W
Technical Specs Nominal Speed
3940 rpm
Technical Specs Nominal Torque
1.7 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
1.4 A
Technical Specs No Load Speed
4400 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Stall Torque
16.3 N·m
Technical Specs Starting Current
519 A
Technical Specs Terminal Inductance
0.27 mH
Technical Specs Terminal Resistance
0.93 Ω
Technical Specs Torque Constant
0.111 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
