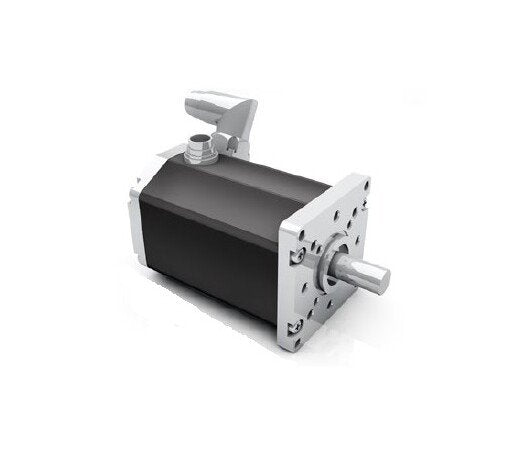

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-0ee2fe
Experience efficiency and reliability with Dunkermotoren BG Series Brushless DC Motor.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$359.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers exceptional performance with a nominal power output of 400W, ideal for applications requiring high efficiency and dynamic acceleration. Featuring neodymium magnets and integrated Hall sensors, this motor ensures precise rotor position detection. With compliance to IP65 protection standards and certifications like UL and CQC, it guarantees reliability and longevity in operation. The modular design allows seamless integration with various control electronics, gearboxes, brakes, and encoders, providing a versatile and market-oriented solution for institutional and government procurement needs.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠56 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
865 W
Technical Specs Maximum Torque
5 N·m
Technical Specs Nominal Current
12 A
Technical Specs Nominal Direct Current Dc Voltage
40 V
Technical Specs Nominal Output Power
400 W
Technical Specs Nominal Speed
3500 rpm
Technical Specs Nominal Torque
1.10 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
1.0 A
Technical Specs No Load Speed
4400 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
437 g/cm²
Technical Specs Stall Torque
9.2 N·m
Technical Specs Starting Current
400 A
Technical Specs Terminal Inductance
0.63 mH
Technical Specs Terminal Resistance
0.1 Ω
Technical Specs Torque Constant
0.117 N·mA-1
Technical Specs Weight Of Motor
2.2 kg
