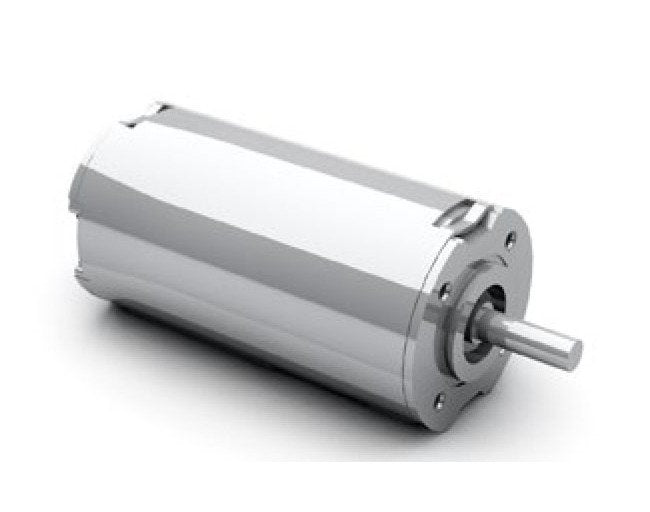

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-93f0d9
High-performance brushless DC motor with Hall sensors for dynamic control and efficiency. Compliant with UL standards.
Regular price
$209.99
Regular price
Sale price
$209.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$209.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$209.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a high-performance, dynamic motor with integrated Hall sensors for precise rotor position detection. Built to meet the demands of both consumer and institutional applications, this motor offers exceptional efficiency, long lifespan, and robust design. With features like optimized control characteristics, wide speed range, and high power density, it provides a maintenance-free solution with high overload capability. Compliant with industry standards like Underwriters Laboratories (UL), this motor is ideal for a wide range of industrial and institutional uses.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Demagnetisation Current
⥠15 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
86 W
Technical Specs Maximum Torque
0.746 N·m
Technical Specs Nominal Current
2.24 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
41 W
Technical Specs Nominal Speed
3630 rpm
Technical Specs Nominal Torque
0.108 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.17 A
Technical Specs No Load Speed
4723 rpm
Technical Specs Peak Power
27 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Stall Torque
0.746 N·m
Technical Specs Starting Current
12.7 A
Technical Specs Terminal Inductance
0.75 mH
Technical Specs Terminal Resistance
1.07 Ω
Technical Specs Torque Constant
0.055 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
