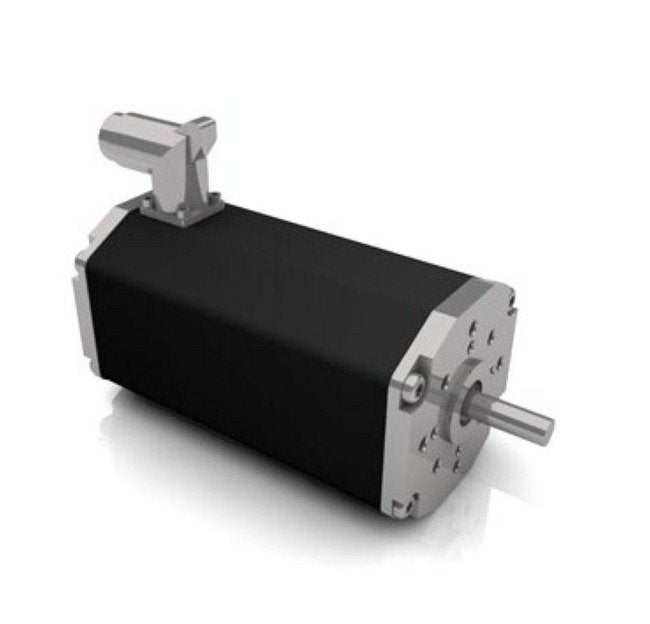

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-04df9b
Highly efficient Dunkermotoren BG Series Brushless DC Motor with Hall Sensors for dynamic acceleration and wide speed range.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with the Dunkermotoren BG Series Brushless DC Motor. Built with advanced features like integrated Hall sensors for precise rotor position detection, this motor offers exceptional efficiency, dynamic acceleration, and a wide speed range. With compliance to industry standards like China Quality Certification (CQC) and Underwriters Laboratories (UL), this motor ensures reliability and quality for both consumer and institutional applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
212 W
Technical Specs Maximum Torque
1.12 N·m
Technical Specs Nominal Current
1.66 A
Technical Specs Nominal Direct Current Dc Voltage
110 V
Technical Specs Nominal Output Power
141.2 W
Technical Specs Nominal Speed
3450 rpm
Technical Specs Nominal Torque
0.391 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5990 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
128 g/cm²
Technical Specs Torque Constant
0.296 N·mA-1
Technical Specs Weight Of Motor
1.30 kg
