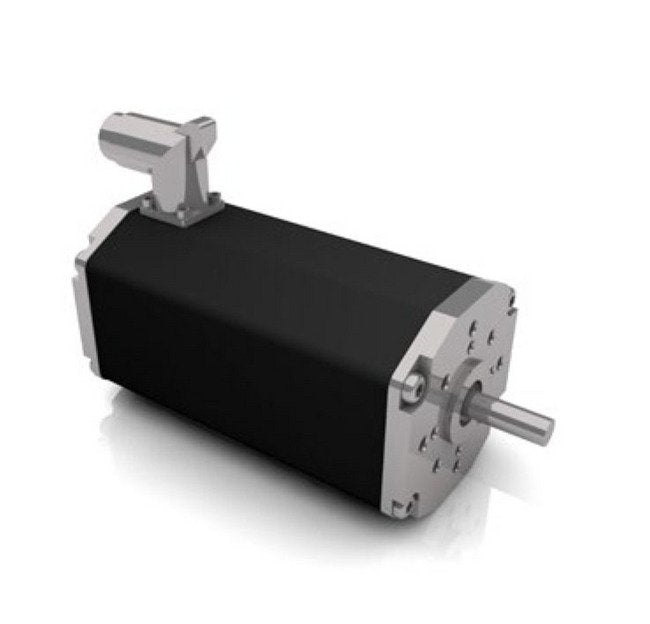

The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a highly dynamic and efficient 3-phase EC motor designed for a wide range of applications. With a nominal current of 3.01 A and nominal output power of 140 W, this motor offers optimized control characteristics, high efficiency, and a robust design. Ideal for institutional buyers looking for long-term reliability and high performance, this motor meets industry standards such as China Quality Certification (CQC) and Underwriters Laboratories (UL). With its maintenance-free operation and adaptable modular system compatibility, the Dunkermotoren BG Series provides a market-oriented solution for various industrial needs.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
208 W
Technical Specs Maximum Torque
1.12 N·m
Technical Specs Nominal Current
3.01 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
140 W
Technical Specs Nominal Speed
3480 rpm
Technical Specs Nominal Torque
0.383 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6020 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
128 g/cm²
Technical Specs Torque Constant
0.161 N·mA-1
Technical Specs Weight Of Motor
1.30 kg
