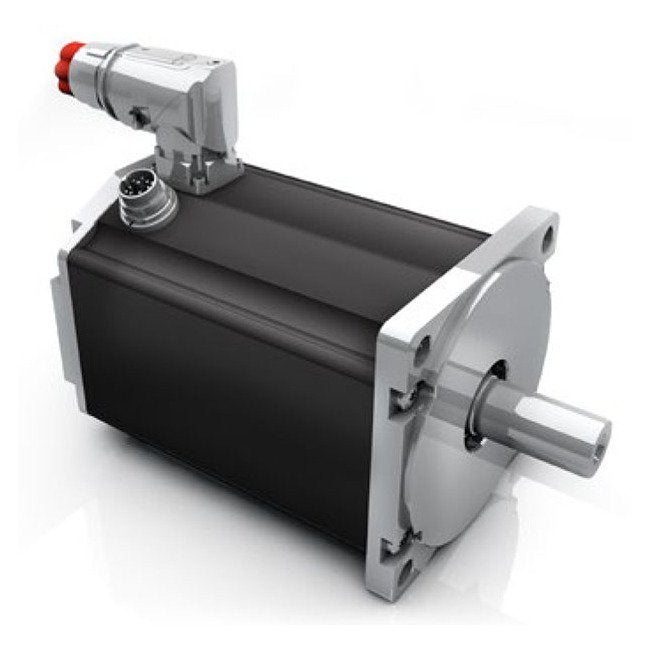

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-c71e13
Dunkermotoren BG Series Brushless DC Motor: High-efficiency, dynamic, UL-compliant motor with integrated Hall sensors.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a top-tier choice for industrial applications. With a nominal current of 47.2A and a nominal output power of 1000W, this motor offers exceptional efficiency, dynamic acceleration, and a wide speed range. Designed for longevity and reliability, it features neodymium magnets, high overload capability, and premium efficiency. Compliant with industry standards such as UL, this motor guarantees optimal performance and durability. When integrated into a modular system with control electronics, gearboxes, and brakes, it becomes a versatile solution tailored to meet diverse market demands.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠185 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
3000 W
Technical Specs Maximum Torque
10 N·m
Technical Specs Nominal Current
47.2 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
1000 W
Technical Specs Nominal Speed
3890 rpm
Technical Specs Nominal Torque
2.44 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
4.2 A
Technical Specs No Load Speed
4150 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Stall Torque
32.65 N·m
Technical Specs Starting Current
1846 A
Technical Specs Terminal Inductance
0.037 mH
Technical Specs Terminal Resistance
0.013 Ω
Technical Specs Torque Constant
0.06 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
