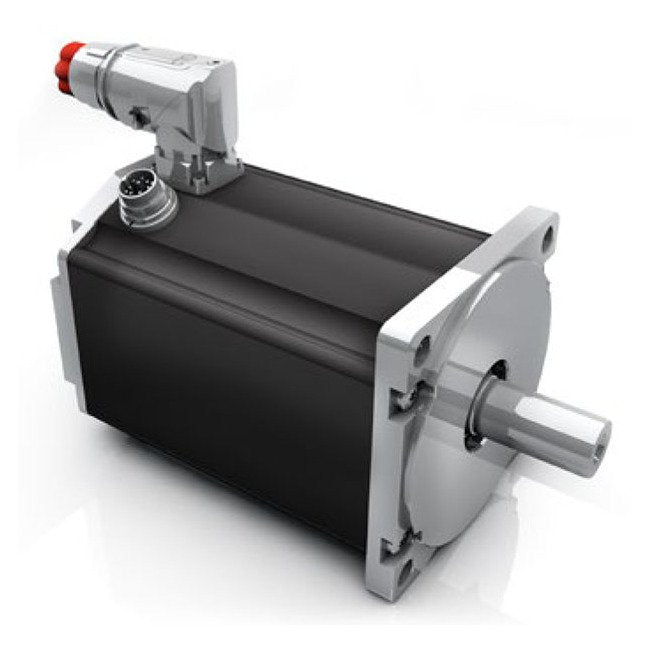

Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
SKU:BGS-c307f2
Powerful Dunkermotoren BG Series Brushless DC Motor for dynamic performance & reliability. Ideal for industrial applications.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$689.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Hall Sensors
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional performance with the Dunkermotoren BG Series Brushless DC Motor. Featuring a nominal current of 13.5A and nominal output power of 714W, this motor offers high efficiency, dynamic acceleration, and robust design. With compliance to IP65 standards, UL certification, and premium efficiency, this motor ensures reliability and longevity in various applications. Integrated Hall sensors enable precise rotor position detection, making it a preferred choice for industrial and government procurements.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1700 W
Technical Specs Maximum Torque
6 N·m
Technical Specs Nominal Current
13.5 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
714 W
Technical Specs Nominal Speed
4088 rpm
Technical Specs Nominal Torque
1.67 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4546 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Stall Torque
5.19 N·m
Technical Specs Torque Constant
0.123 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
