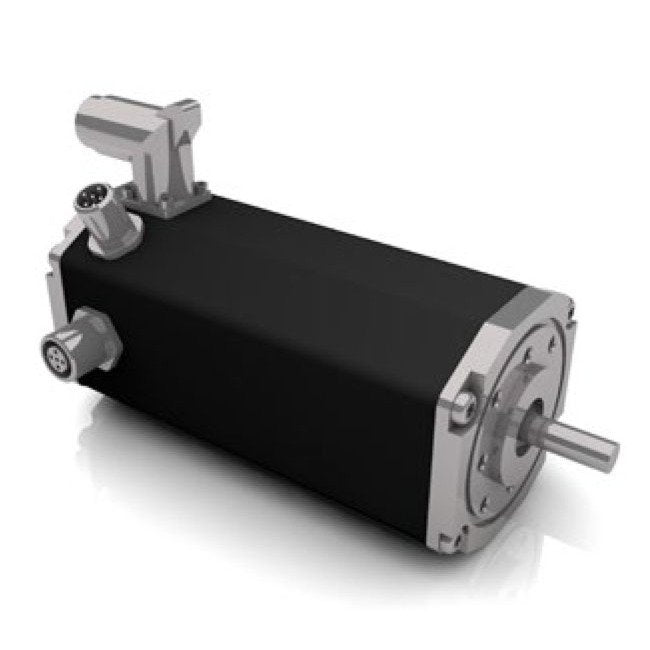

Dunkermotoren BG Series Brushless DC Motor with Integrated Control
Dunkermotoren BG Series Brushless DC Motor with Integrated Control
SKU:BGS-ea81a2
Enhance control precision with Dunkermotoren's BG Series Brushless DC Motor, ideal for CANopen or standalone operation.
Regular price
$429.99
Regular price
Sale price
$429.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control
$429.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control
$429.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics offers precise control through CANopen or standalone operation. With a nominal current of 5.6A and 231W nominal output power, it features high position accuracy, field-oriented control, and excellent control characteristics. This motor is programmable, offers high IP protection, inherent overload protection, and is compatible with various encoders, brakes, and gearboxes.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
306 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
485 W
Technical Specs Maximum Torque
2.05 N·m
Technical Specs Nominal Current
5.6 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
231 W
Technical Specs Nominal Speed
3400 rpm
Technical Specs Nominal Torque
0.65 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3780 rpm
Technical Specs Peak Current
13.6 A
Technical Specs Peak Power
732 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.13 N·mA-1
Technical Specs Weight Of Motor
1.65 kg
