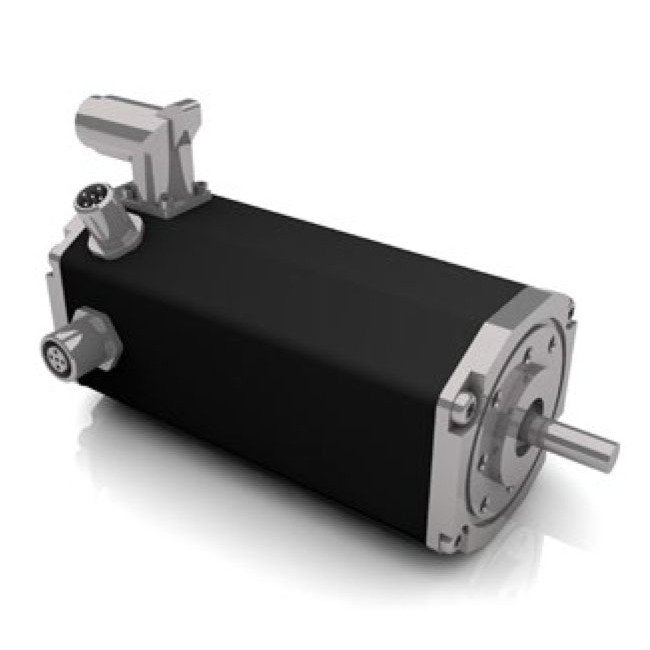

The Dunkermotoren BG Series 4A Brushless DC Motor delivers precise control and high performance. With a 48V DC voltage, it offers a nominal output power of 161W and features field-oriented control, integrated magnetic encoder, and a peak power of 732W. This motor ensures high positions accuracy and excellent control characteristics, making it ideal for demanding industrial applications. It is programmable, offers inherent overload protection, and has high IP protection with Ingress Protection (IP65) rating.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
306 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
277 W
Technical Specs Maximum Torque
1.03 N·m
Technical Specs Nominal Current
4 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
161 W
Technical Specs Nominal Speed
3630 rpm
Technical Specs Nominal Torque
0.42 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4380 rpm
Technical Specs Peak Current
7.75 A
Technical Specs Peak Power
732 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.14 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
