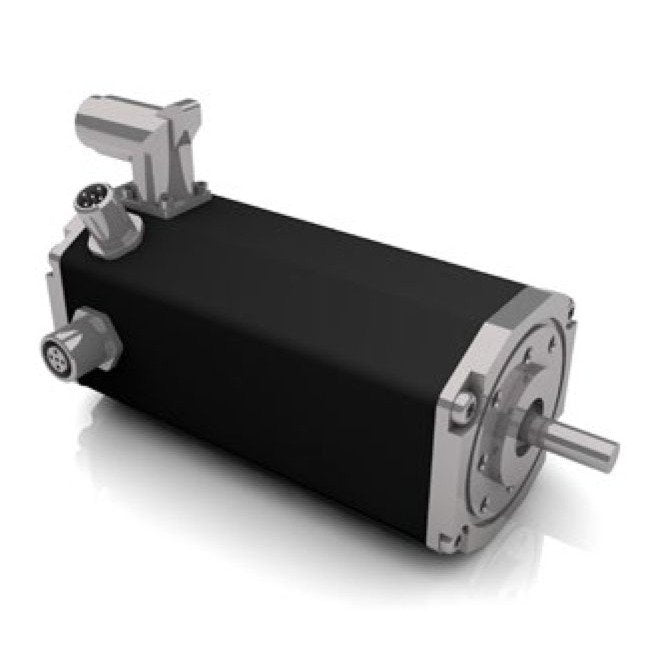

The Dunkermotoren BG Series 11 Ampere Brushless DC Motor delivers precise control with integrated 4Q servo controller and field-oriented control. With a nominal current of 11A and nominal output power of 103W, this motor ensures high position accuracy and excellent control characteristics. It features a Torque Constant of 0.045 N·mA-1, IP65 Ingress Protection, and compliance with industry standards like CE and UL.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
306 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
160 W
Technical Specs Maximum Torque
0.82 N·m
Technical Specs Nominal Current
11 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
103 W
Technical Specs Nominal Speed
2800 rpm
Technical Specs Nominal Torque
0.35 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3810 rpm
Technical Specs Peak Power
732 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.045 N·mA-1
Technical Specs Weight Of Motor
1.2 kg
