Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
SKU:BGS-b2e0b9
Dunkermotoren BG Series Brushless DC Motor: Precision control & high efficiency for diverse applications. Compliant with international standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

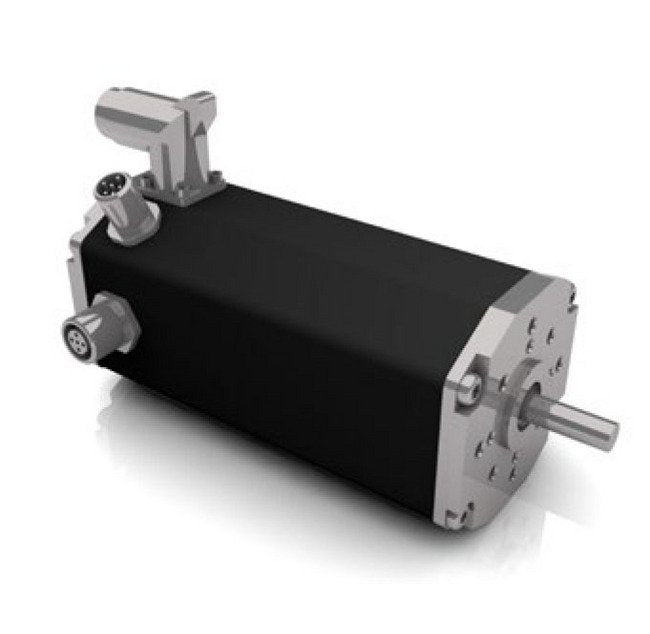

The Dunkermotoren BG Series 7.7A Nominal Current and 142W Nominal Output Power Brushless DC Motor with Integrated Control Electronics is a powerhouse motor designed for precision control and seamless integration. With speed, positioning, and current control capabilities, it offers versatility for various applications. This motor complies with international standards, including China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), ensuring reliability and performance. Its high IP protection, overload protection, and Smart Diagnostics make it a top choice for institutional and government buyers seeking efficiency and durability.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
195 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
261 W
Technical Specs Maximum Torque
1.16 N·m
Technical Specs Nominal Current
7.7 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
142 W
Technical Specs Nominal Speed
3470 rpm
Technical Specs Nominal Torque
0.39 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current Consumption
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
6190 rpm
Technical Specs Peak Current Consumption
17.2 A
Technical Specs Peak Power
391 W
Technical Specs Phase Peak Current
30000 mA
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
128 g/cm²
Technical Specs Torque Constant
0.069 N·mA-1
Technical Specs Weight Of Motor
1.5 kg
