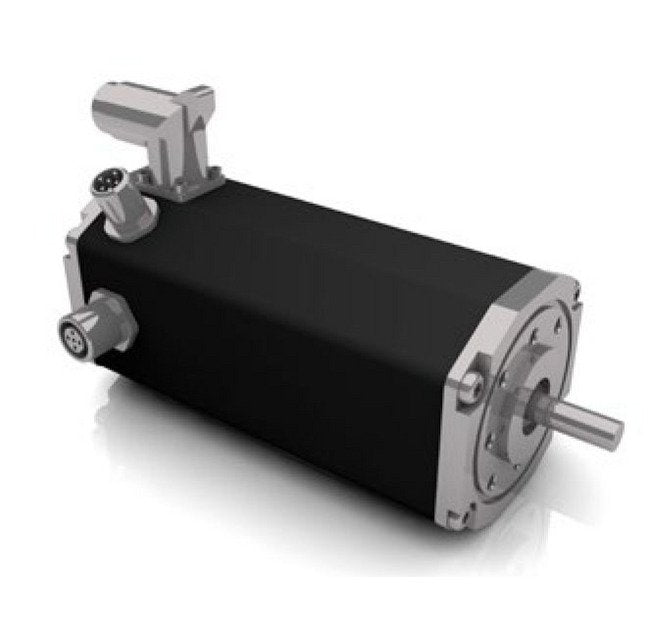

The Dunkermotoren BG Series 10A Brushless DC Motor offers precise speed, position, and current control operations. With a nominal output power of 193W and a maximum torque of 1.9 N·m, this motor guarantees high efficiency and reliability. Integrated with a CiA 402 compatible 4Q controller, it ensures seamless integration into various systems. Its IP65 protection class and overload protection make it ideal for industrial applications requiring durability. Certified by CQC, CE, and UL, this motor meets stringent quality and safety standards.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
278 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
433 W
Technical Specs Maximum Torque
1.9 N·m
Technical Specs Nominal Current
10 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
193 W
Technical Specs Nominal Speed
3480 rpm
Technical Specs Nominal Torque
0.53 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4500 rpm
Technical Specs Peak Current
26 A
Technical Specs Peak Power
684 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
129 g/cm²
Technical Specs Torque Constant
0.07 N·mA-1
Technical Specs Weight Of Motor
1.65 kg
