Experience precise control and high performance with Dunkermotoren's BG Series Brushless DC Motor with Integrated Control Electronics.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$789.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

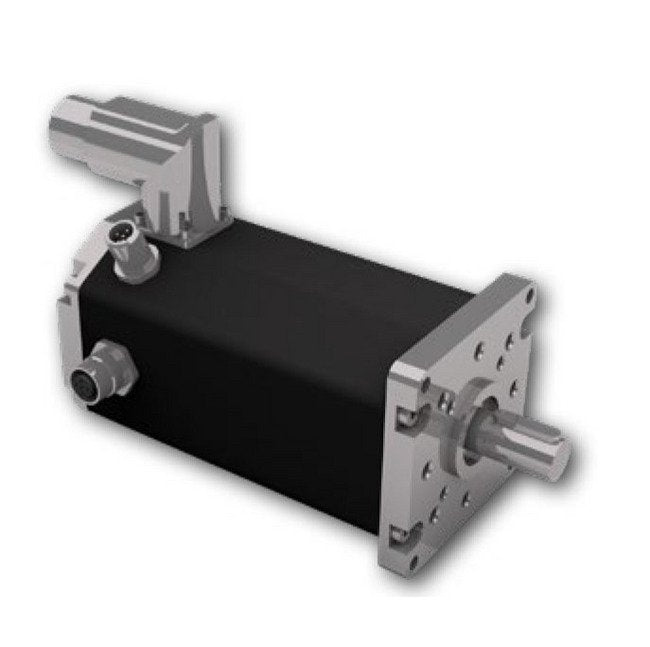

The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics offers precise control through CANopen or standalone operation, high position accuracy, and excellent control characteristics. With an integrated 4Q servo controller and field-oriented control, this motor provides flexibility and performance. It features a torque constant of 0.14 N·mA-1, maximum power of 1317W, and feedback integrated with 4096 cycles/rev for optimal operation. Additionally, its high IP protection and overload protection make it a reliable choice for various applications. This motor is compliant with industry standards including CQC, CE, and UL.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceBallast circuitHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
560 W
Technical Specs Direct Current Dc Voltage Range
3 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1317 W
Technical Specs Maximum Torque
6.15 N·m
Technical Specs Nominal Current
13.07 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
570 W
Technical Specs Nominal Speed
3650 rpm
Technical Specs Nominal Torque
1.49 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3850 rpm
Technical Specs Peak Current
36.7 A
Technical Specs Peak Power
1700 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
652 g/cm²
Technical Specs Torque Constant
0.14 N·mA-1
Technical Specs Weight Of Motor
2.8 kg
