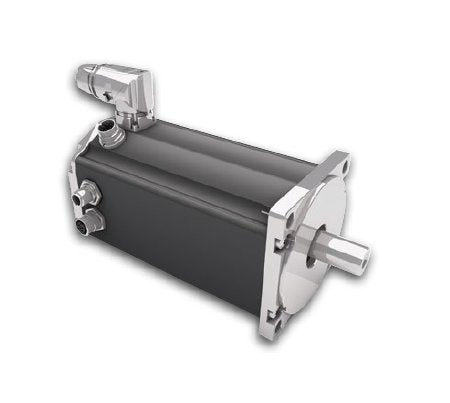

Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
SKU:BGS-038726
Experience precision control with the Dunkermotoren BG Series Brushless DC Motor, ensuring high performance and reliability in industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 50 Ampere Brushless DC Motor delivers exceptional control accuracy and high performance with its integrated 4Q servo controller and vector control technology. With a nominal output power of 700W and a torque constant of 0.12 N·mA-1, this motor ensures efficient and precise operation. It features speed, positioning, and current control, high IP protection against water and contamination, overload protection, and compatibility with various accessories like encoders and gearboxes. Compliant with IP65 standards, CE, UL, and CQC certifications, this motor is ideal for applications requiring high reliability and industry-grade performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 52 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1700 W
Technical Specs Maximum Torque
6.5 N·m
Technical Specs Nominal Current
50 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
700 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
1.7 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary Data, Minimum Quantity - 250 Pieces
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4400 rpm
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
950 g/cm²
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
3.5 kg
