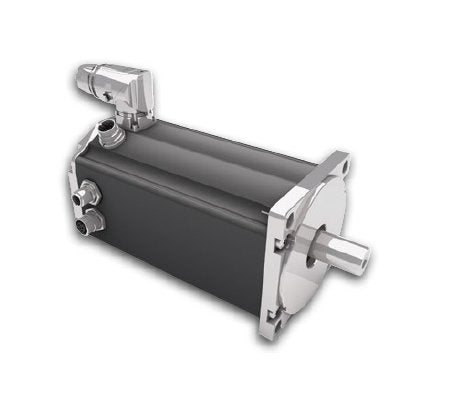

The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics offers superior performance with a Nominal Current of 31.4A and Nominal Output Power of 1370W. With vector control (FOC), high IP protection, and inherent overload protection, this motor ensures precise control and reliable operation. Certified by China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), it meets stringent industry standards, making it ideal for government and institutional procurement.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 66 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
4400 W
Technical Specs Maximum Torque
14.5 N·m
Technical Specs Nominal Current
31.4 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
1370 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
3.5 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary Data, Minimum Quantity - 250 Pieces
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Current
102 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
6.7 kg
