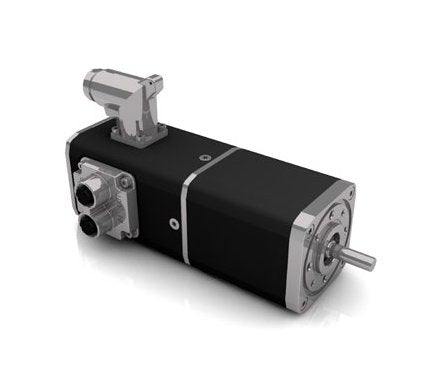

Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
SKU:BGS-e612d3
High-performance Dunkermotoren BG Series Brushless DC Motor with integrated control electronics for precise control and safety features.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor features a nominal current of 2A and a nominal output power of 74W, making it ideal for applications requiring precise speed, positioning, and current control. With integrated control electronics, high-resolution encoders, and advanced safety features like Safe Torque Off, this motor ensures efficient and reliable operation. It meets industry standards such as China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), making it a trusted choice for government and institutional procurement.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-Rampe
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
108.2 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
2 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
74 W
Technical Specs Nominal Speed
4720 rpm
Technical Specs Nominal Torque
0.15 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5230 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
