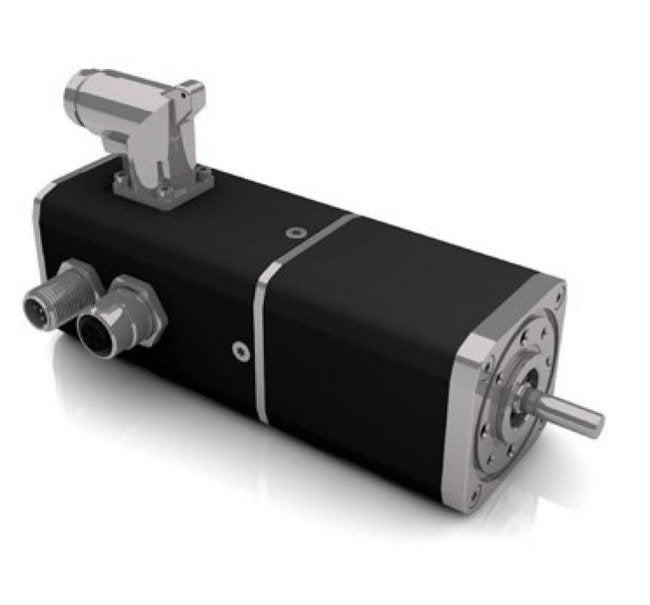

The Dunkermotoren BG Series 7.45A Brushless DC Motor with 68.6W Nominal Output Power is a high-performance motor with precise control capabilities. Featuring field-oriented control and integrated 4Q servo controller, this motor ensures high position accuracy and excellent control characteristics. With a magnetic encoder of 4096 cpr and FOC, it offers versatility in various applications. It is programmable, supports CANopen control, and boasts high efficiency and overload protection. This motor is IP65 rated for protection against water and contamination, making it ideal for demanding industrial environments.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
109.5 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
7.45 A
Technical Specs Nominal Direct Current Dc Voltage
12 V
Technical Specs Nominal Output Power
68.6 W
Technical Specs Nominal Speed
4430 rpm
Technical Specs Nominal Torque
0.148 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5180 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
