Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
SKU:BGS-b07872
High-performance Dunkermotoren BG Series Brushless DC Motor with integrated control for precise operations. IP65 protection, CE, UL, CQC compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

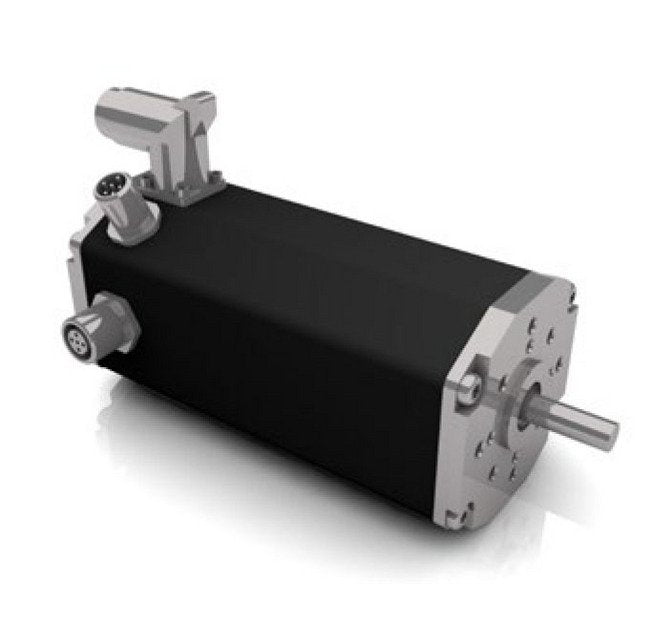

The Dunkermotoren BG Series Brushless DC Motor with Integrated Control Electronics is a high-performance motor system designed for precise speed, positioning, and current control operations. With a nominal current of 2.8A and a nominal output power of 104W, this motor offers exceptional torque and speed capabilities. It features integrated control through digital and analog inputs, as well as CANopen or RS 485 compatibility, making it versatile for various applications. With IP65 protection and inherent overload protection, it ensures reliable performance in harsh environments. Compliant with industry standards such as CE, UL, and CQC, this motor is ideal for government and institutional buyers seeking quality, efficiency, and durability.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableRS485 version availableIO modeSpeed modeCurrent modePositioningBlock commutationDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelBallast circuitHigh efficiencyOperating hoursVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
195 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
172 W
Technical Specs Maximum Torque
0.58 N·m
Technical Specs Nominal Current
2.8 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
104 W
Technical Specs Nominal Speed
4130 rpm
Technical Specs Nominal Torque
0.240 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current Consumption
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
7720 rpm
Technical Specs Peak Current Consumption
5.2 A
Technical Specs Peak Power
391 W
Technical Specs Phase Peak Current
9705 mA
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
72 g/cm²
Technical Specs Torque Constant
0.116 N·mA-1
Technical Specs Weight Of Motor
1 kg
