Dunkermotoren BG Series Brushless DC Motor with Integrated Controls
Dunkermotoren BG Series Brushless DC Motor with Integrated Controls
SKU:BGS-605cdc
Dunkermotoren BG Series Brushless DC Motor: Precision, efficiency, and compliance for industrial applications.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Controls
$329.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Controls
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

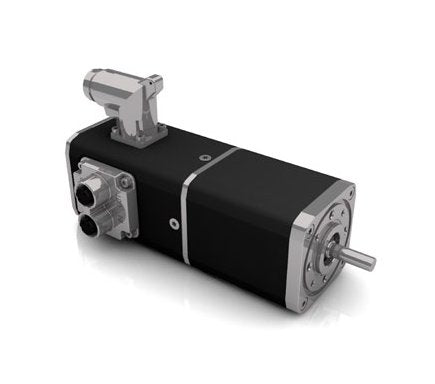

The Dunkermotoren BG Series 3.83A Brushless DC Motor with Integrated Control Electronics offers precision and efficiency for industrial applications. With a Nominal Output Power of 70.7W, this motor provides reliable performance. Key features include Safe Torque Off, PROFINET, EtherCAT, and Ethernet/IP variants for seamless integration. Programmable with Motion Code, it offers inherent overload protection and Smart Diagnostics. Meeting IP65 Ingress Protection and industry certifications like CQC, CE, and UL, this motor ensures compliance and high-quality standards for institutional procurement.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-Rampe
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
108.2 W
Technical Specs Direct Current Dc Voltage Range
2 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Nominal Current
3.83 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
70.7 W
Technical Specs Nominal Speed
4660 rpm
Technical Specs Nominal Torque
0.145 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs No Load Speed
5160 rpm
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Weight Of Motor
0.63 kg
