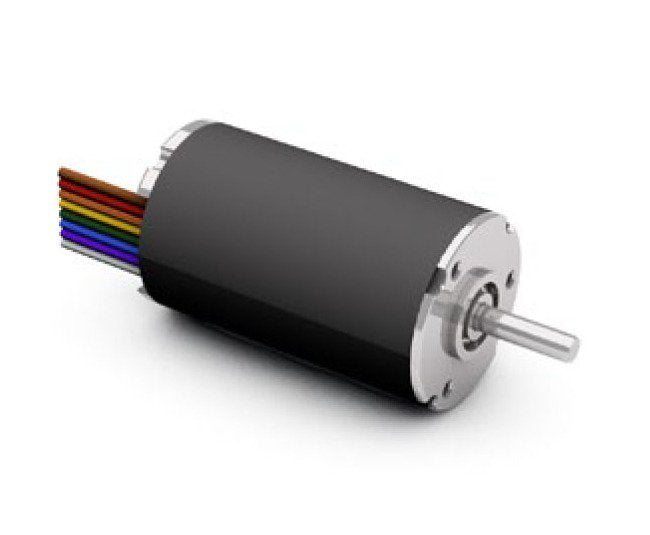

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-156455
High-performance Dunkermotoren BG Series Brushless DC Motor for precise control and reliability in diverse applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$149.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers a high-quality, rare earth-magnet design with unmatched power density and overload capability. With a weight-optimized, low noise level construction, this motor boasts a coreless design eliminating cogging torque. Equipped with hall sensors for precise rotor position detection, it's suitable for sensorless control, ensuring optimal performance and reliability in various applications. With features like very long lifetime, high efficiency, and maintenance-free operation, this motor is a robust, market-oriented solution meeting industry-specific certifications and standards.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.Connection via ribbon cable - Optionally, the motors are also available with flying plugs
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
25 W
Technical Specs Feedback Integrated
18 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
34 W
Technical Specs Nominal Current
2.08 A
Technical Specs Nominal Direct Current Dc Voltage
6 V
Technical Specs Nominal Output Power
6.20 W
Technical Specs Nominal Speed
2.990 rpm
Technical Specs Nominal Torque
0.020 N·m
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Terminal Inductance
Only for hall version
Technical Specs Note For Terminal Resistance
Only for hall version
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Speed
5500 rpm
Technical Specs Peak Power
236 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
15 g/cm²
Technical Specs Stall Torque
0.0589 N·m
Technical Specs Terminal Inductance
45 µH
Technical Specs Terminal Resistance
1.0 Ω
Technical Specs Torque Constant
0.011 N·mA-1
Technical Specs Weight Of Motor
0.065 kg
