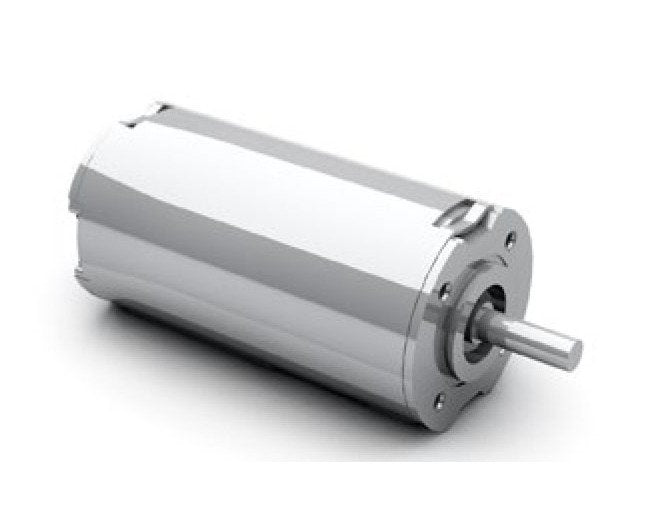

• Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors - Image 1

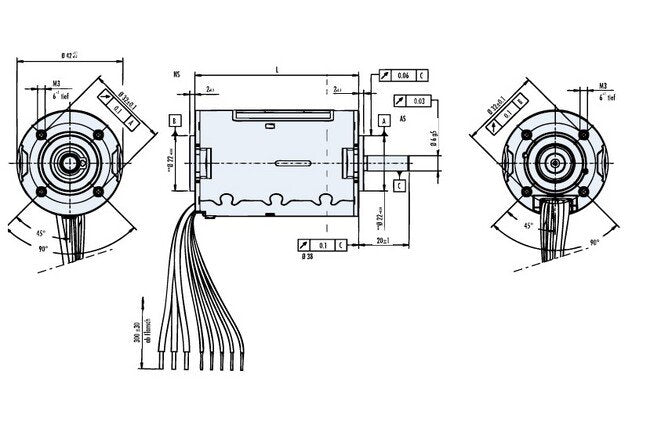

  • Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors - Image 2
1 2
Dunkermotoren →

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

BGS-1767ae

High-performance Dunkermotoren Brushless DC Motor with precise Hall sensors for dynamic acceleration and maintenance-free operation.

$299.99
$299.99
Sale

Initiate Order

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

$299.99

Quantity: 1

Claim Your Seller Account

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Dunkermotoren BG Series Brushless DC Motor is a high-performing 3-phase EC motor featuring neodymium magnets and Hall sensors for precise rotor position detection. With a nominal output power of 64W and superior efficiency, this motor offers exceptional dynamic acceleration, wide speed range, and maintenance-free operation. Compliant with Ingress Protection (IP40) standards and equipped with premium efficiency neodymium magnets, this motor ensures robust performance and durability in diverse institutional applications.

Product Specifications

Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
20 W
Technical Specs Demagnetisation Current
≥ 26 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
156 W
Technical Specs Maximum Torque
1.52 N·m
Technical Specs Nominal Current
3.3 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
64 W
Technical Specs Nominal Speed
3580 rpm
Technical Specs Nominal Torque
0.172 N·m
Technical Specs Note For Demagnetisation Current
ϑR = 20ºC
Technical Specs Note For Maximum Torque
ϑR = 20ºC
Technical Specs Note For Nominal Current
Δϑw = 100 K
Technical Specs Note For Nominal Output Power
ϑR = 20ºC
Technical Specs Note For Nominal Torque
Δϑw = 100 K
Technical Specs Note For No Load Current
ϑR = 20ºC
Technical Specs Note For No Load Speed
Δϑw = 100 K
Technical Specs Note For Stall Torque
ϑR = 20ºC
Technical Specs Note For Starting Current
ϑR = 20ºC
Technical Specs Note For Torque Constant
Only for hall version
Technical Specs No Load Current
0.23 A
Technical Specs No Load Speed
4434 rpm
Technical Specs Peak Power
27 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP40)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Stall Torque
1.52 N·m
Technical Specs Starting Current
23.1 A
Technical Specs Terminal Inductance
0.43 mH
Technical Specs Terminal Resistance
0.53 Ω
Technical Specs Torque Constant
0.059 N·mA-1
Technical Specs Weight Of Motor
0.47 kg
