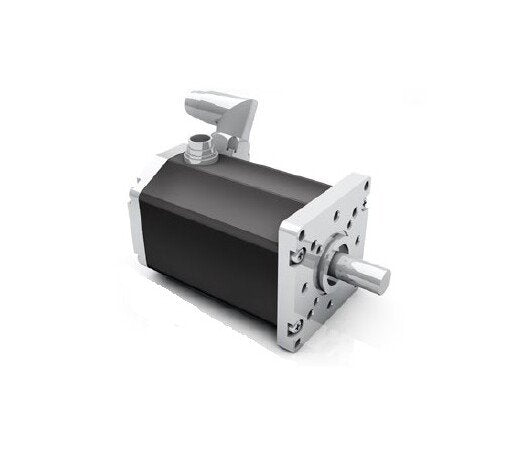

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-7e65c4
Experience efficiency and reliability with Dunkermotoren's BG Series Brushless DC Motor for dynamic performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 21A 431W Brushless DC Motor offers a highly dynamic and efficient solution for a wide range of applications. With integrated Hall sensors for precise rotor position detection, this motor ensures optimized control characteristics and high power density. Its robust design, premium efficiency, and maintenance-free operation guarantee a long lifetime and reliable performance. Compliant with industry standards like UL, this motor is ideal for institutional buyers seeking top-tier EC motors.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠99 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
860 W
Technical Specs Maximum Torque
5 N·m
Technical Specs Nominal Current
21 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
431 W
Technical Specs Nominal Speed
3780 rpm
Technical Specs Nominal Torque
1.09 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
1.76 A
Technical Specs No Load Speed
4660 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
437 g/cm²
Technical Specs Stall Torque
7.25 N·m
Technical Specs Starting Current
735 A
Technical Specs Terminal Inductance
0.25 mH
Technical Specs Terminal Resistance
0.04 Ω
Technical Specs Torque Constant
0.052 N·mA-1
Technical Specs Weight Of Motor
2.2 kg
