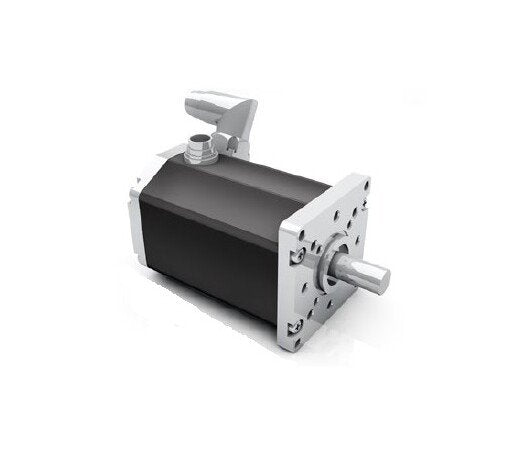

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-81e6d5
High-performance Dunkermotoren BG Series Brushless DC Motor with Hall Sensors for dynamic acceleration and premium efficiency.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series 2.0 Ampere Brushless DC Motor with 546 Watt Nominal Output Power and Integrated Hall Sensors is a high-performance motor designed for dynamic acceleration, high efficiency, and long lifetime. This motor features optimized control characteristics, wide speed range, and robust design. With premium efficiency and maintenance-free operation, it offers a flexible, market-oriented solution when combined with control electronics, gearboxes, brakes, and encoders.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
550 W
Technical Specs Demagnetisation Current
⥠8.1 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1150 W
Technical Specs Maximum Torque
6.3 N·m
Technical Specs Nominal Current
2 A
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Nominal Output Power
546 W
Technical Specs Nominal Speed
3480 rpm
Technical Specs Nominal Torque
1.49 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.150 A
Technical Specs No Load Speed
4210 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
1150 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
652 g/cm²
Technical Specs Stall Torque
12.1 N·m
Technical Specs Starting Current
73 A
Technical Specs Terminal Inductance
28 mH
Technical Specs Terminal Resistance
4.45 Ω
Technical Specs Torque Constant
0.92 N·mA-1
Technical Specs Weight Of Motor
2.8 kg
