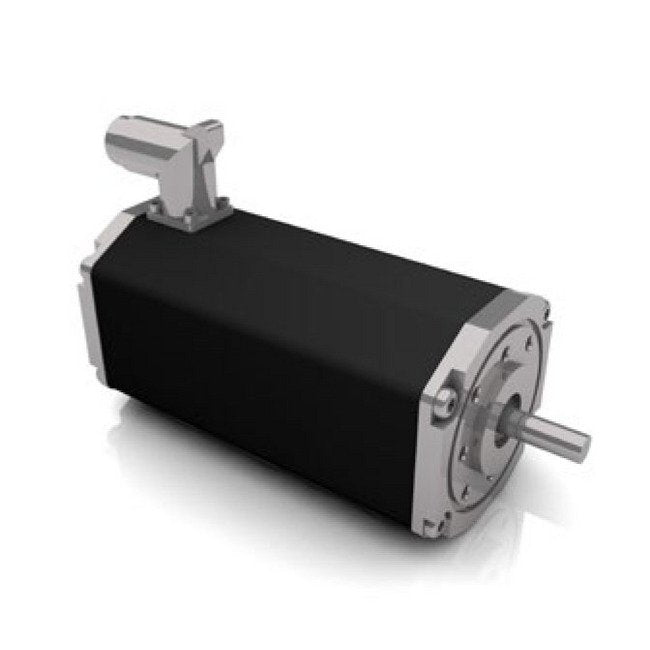

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-12e613
Highly dynamic Dunkermotoren BG Series Brushless DC Motor with integrated hall sensors, delivering 351W output power. IP65 certified. CQC and UL compliant.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$549.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic 3-phase EC motor featuring 10-pole neodymium magnets and integrated hall sensors for precise rotor position detection. With a nominal output power of 351W and a peak power of 730W, this motor offers optimized control characteristics, wide speed range, and high efficiency. Compliant with Ingress Protection (IP65) standards, China Quality Certification (CQC), and Underwriters Laboratories (UL), it ensures reliability, durability, and performance for industrial applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
779 W
Technical Specs Maximum Torque
4.38 N·m
Technical Specs Nominal Current
6.7 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
351 W
Technical Specs Nominal Speed
3410 rpm
Technical Specs Nominal Torque
0.985 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3740 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
188 g/cm²
Technical Specs Torque Constant
0.168 N·mA-1
Technical Specs Weight Of Motor
1.93 kg
