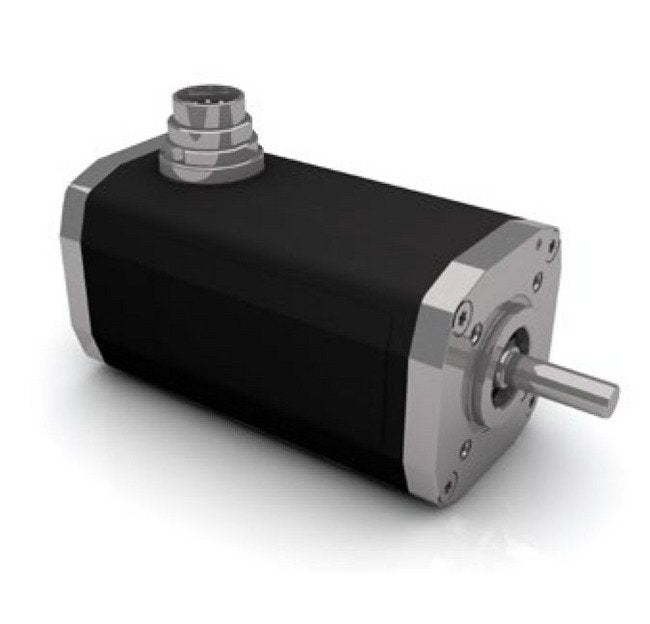

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-375d38
High-performance BG Series Brushless DC Motor with Integrated Hall Sensors for precision and efficiency. Certified IP65 with feedback integrated.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a high-performance motor designed for precision and efficiency. With a nominal power output of 79W and a peak power of 156W, this motor offers dynamic acceleration, wide speed range, and optimized control characteristics. Certified to meet Ingress Protection (IP65) standards and with feedback integrated (24 cycles/rev), this motor is ideal for applications requiring reliability, efficiency, and flexibility. Paired with control electronics, gearboxes, brakes and encoders, this motor provides a modular solution for a wide range of industrial needs.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
80 W
Technical Specs Demagnetisation Current
⥠26 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
156 W
Technical Specs Maximum Torque
1.52 N·m
Technical Specs Nominal Current
4.2 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
79 W
Technical Specs Nominal Speed
3440 rpm
Technical Specs Nominal Torque
0.219 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.4 A
Technical Specs No Load Speed
4110 rpm
Technical Specs Peak Power
156 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
44 g/cm²
Technical Specs Stall Torque
1.52 N·m
Technical Specs Starting Current
31.4 A
Technical Specs Terminal Inductance
0.43 mH
Technical Specs Terminal Resistance
0.53 Ω
Technical Specs Torque Constant
0.059 N·mA-1
Technical Specs Weight Of Motor
0.56 kg
