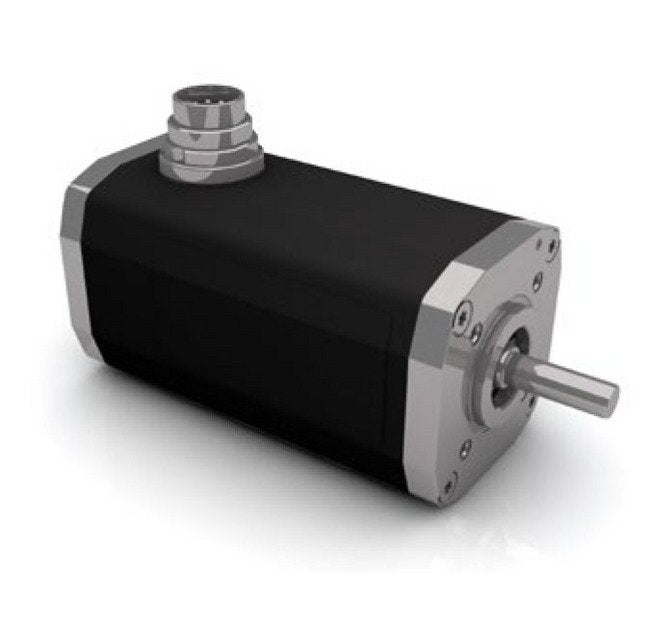

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-4e263d
Dunkermotoren BG Series Brushless DC Motor: Dynamic, efficient, and reliable for institutional applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a highly dynamic and efficient motor designed for a wide speed range and high power density. With integrated Hall sensors for rotor position detection, this motor ensures optimized control characteristics and a very long lifetime. Featuring premium efficiency and maintenance-free operation, it offers a robust design with high overload capability, making it ideal for demanding institutional applications. Compliant with Ingress Protection (IP65) standards and Underwriters Laboratories (UL) certification, this motor guarantees reliability and performance.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
80 W
Technical Specs Demagnetisation Current
⥠15 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
86 W
Technical Specs Maximum Torque
0.746 N·m
Technical Specs Nominal Current
2.24 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
48.8 W
Technical Specs Nominal Speed
3380 rpm
Technical Specs Nominal Torque
0.138 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.3 A
Technical Specs No Load Speed
4390 rpm
Technical Specs Peak Power
156 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
24 g/cm²
Technical Specs Stall Torque
0.746 N·m
Technical Specs Starting Current
17.3 A
Technical Specs Terminal Inductance
0.75 mH
Technical Specs Terminal Resistance
1.1 Ω
Technical Specs Torque Constant
0.055 N·mA-1
Technical Specs Weight Of Motor
0.36 kg
