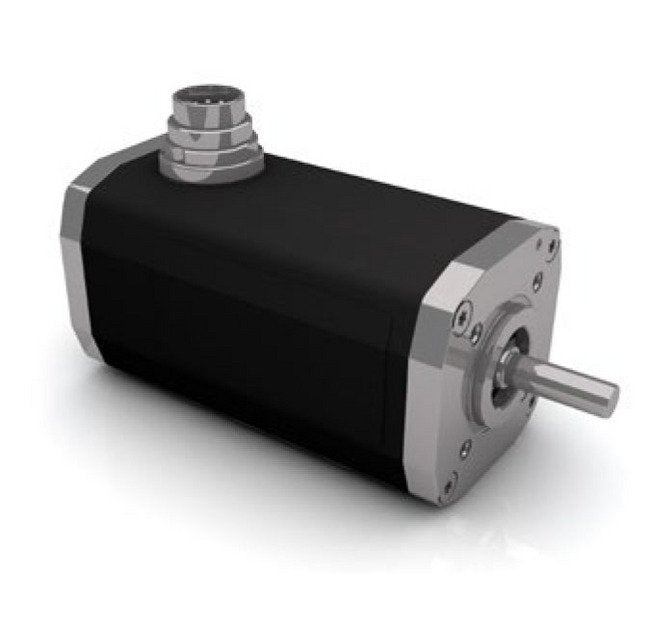

The Dunkermotoren BG Series 5.56A Brushless DC Motor with 109W Output Power is a highly dynamic, efficient, and maintenance-free motor designed for precision performance. With advanced features like integrated Hall sensors, neodymium magnets, and optimized control characteristics, this motor offers a wide speed range, high power density, and robust design. Certified to meet UL standards, this motor ensures reliability, longevity, and compliance with industry requirements.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
80 W
Technical Specs Demagnetisation Current
⥠37 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
226 W
Technical Specs Maximum Torque
2.25 N·m
Technical Specs Nominal Current
5.56 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
109 W
Technical Specs Nominal Speed
3400 rpm
Technical Specs Nominal Torque
0.324 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
0.5 A
Technical Specs No Load Speed
4200 rpm
Technical Specs Peak Power
156 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
64 g/cm²
Technical Specs Stall Torque
2.25 N·m
Technical Specs Starting Current
45 A
Technical Specs Terminal Inductance
0.25 mH
Technical Specs Terminal Resistance
0.3 Ω
Technical Specs Torque Constant
0.055 N·mA-1
Technical Specs Weight Of Motor
0.76 kg
