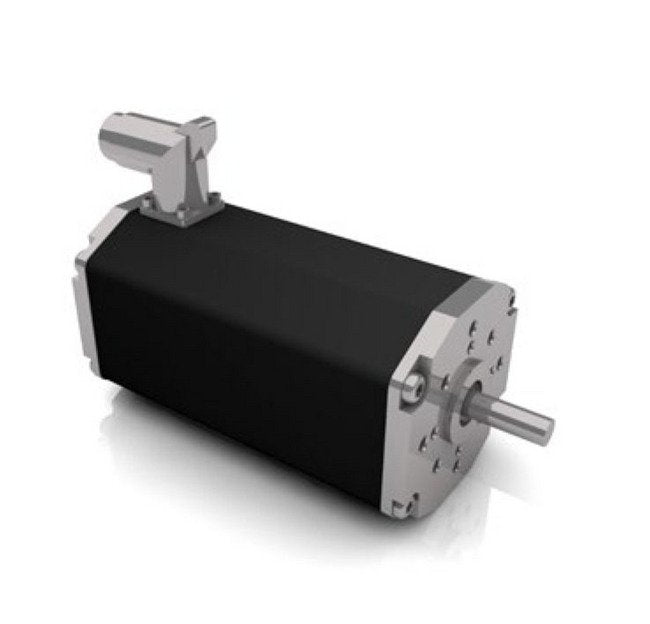

Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
SKU:BGS-352b06
High-performance Dunkermotoren BG Series Brushless DC Motor with Hall Sensors, delivering efficiency and reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$299.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a high-performance 3-phase EC motor with integrated Hall sensors for precise rotor position detection. Operating at a nominal current of 2.55A and delivering 90W of output power, this motor offers exceptional efficiency, dynamic acceleration, and robust design. With compliance to IP65 protection class, CQC, UL certifications, and industry-leading standards, it ensures reliability and longevity in diverse applications. Combined with control electronics and other accessories, this motor provides a flexible and market-oriented solution for institutional and government procurements.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
102 W
Technical Specs Maximum Torque
0.58 N·m
Technical Specs Nominal Current
2.55 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
90 W
Technical Specs Nominal Speed
3920 rpm
Technical Specs Nominal Torque
0.219 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
7720 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
71.6 g/cm²
Technical Specs Torque Constant
0.122 N·mA-1
Technical Specs Weight Of Motor
0.87 kg
