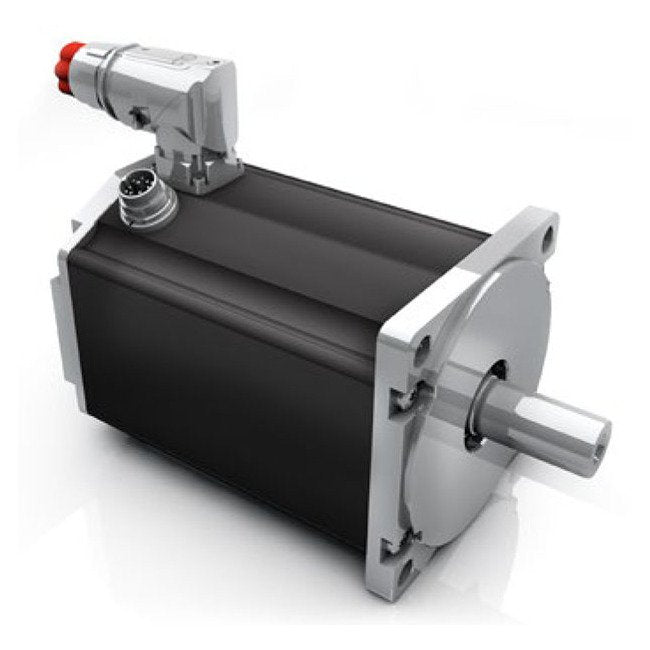

Dunkermotoren BG Series DC Motor with Hall Sensors
Dunkermotoren BG Series DC Motor with Hall Sensors
SKU:BGS-4cf624
Dynamic Dunkermotoren BG Series DC Motor with integrated Hall sensors for precise control and efficiency.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dunkermotoren BG Series DC Motor with Hall Sensors
$599.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series DC Motor with Hall Sensors
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series DC Motor is a highly dynamic and efficient 3-phase EC motor featuring neodymium magnets and integrated Hall sensors for precise rotor position detection. With a nominal current of 26.5A and nominal output power of 1370W, this motor offers optimized control characteristics, high power density, and wide speed range. Its modular design allows seamless integration with control electronics, gearboxes, brakes, and encoders, providing a robust and maintenance-free solution for various applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
4400 W
Technical Specs Maximum Torque
14.5 N·m
Technical Specs Nominal Current
26.5 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
1370 W
Technical Specs Nominal Speed
3900 rpm
Technical Specs Nominal Torque
3.5 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4200 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Stall Torque
48 N·m
Technical Specs Torque Constant
0.12 N·mA-1
Technical Specs Weight Of Motor
6.7 kg
