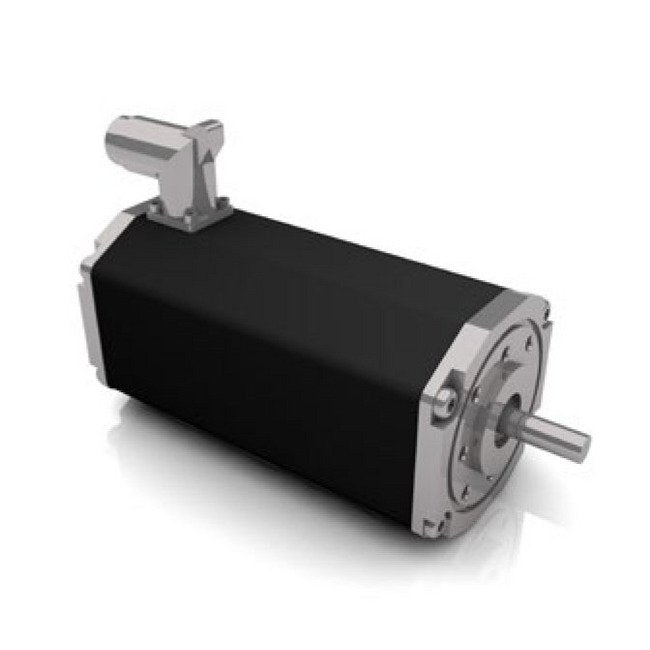

Dunkermotoren BG Series EC Motor - 3.2A/160W Brushless DC Motor
Dunkermotoren BG Series EC Motor - 3.2A/160W Brushless DC Motor
SKU:BGS-05c143
Powerful Dunkermotoren BG Series EC Motor with 3.2A/160W output, Hall sensors, and high efficiency for dynamic applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BG Series EC Motor - 3.2A/160W Brushless DC Motor
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series EC Motor - 3.2A/160W Brushless DC Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor offers outstanding performance with a nominal current of 3.2A and 160W nominal output power. Featuring integrated Hall sensors for precise rotor position detection, this motor is designed for high efficiency, dynamic acceleration, and wide speed range. With compliance to industry standards including IP65 protection and certifications like CQC and UL, it ensures reliable operation in various environments. Additionally, when combined with control electronics, gearboxes, and encoders, this motor provides a customizable and adaptable solution for a range of applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
275 W
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
306 W
Technical Specs Maximum Torque
1.46 N·m
Technical Specs Nominal Current
3.2 A
Technical Specs Nominal Direct Current Dc Voltage
60 V
Technical Specs Nominal Output Power
160 W
Technical Specs Nominal Speed
3440 rpm
Technical Specs Nominal Torque
0.444 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4340 rpm
Technical Specs Peak Power
730 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
70 g/cm²
Technical Specs Torque Constant
0.172 N·mA-1
Technical Specs Weight Of Motor
0.99 kg
