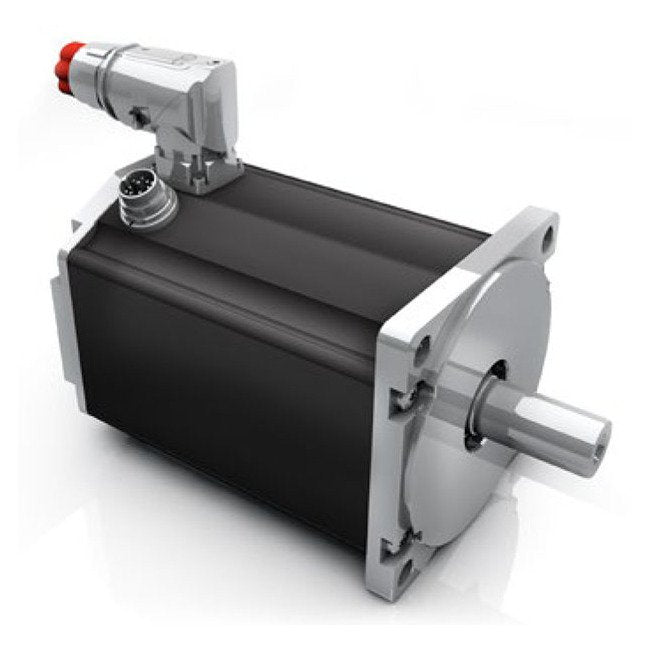

Dunkermotoren BG Series EC Motor with Hall Sensors
Dunkermotoren BG Series EC Motor with Hall Sensors
SKU:BGS-c2f615
Highly efficient Dunkermotoren BG Series EC Motor with integrated Hall sensors for precise control and reliability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren BG Series EC Motor with Hall Sensors
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series EC Motor with Hall Sensors
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor is a high-performance, dynamic motor featuring neodymium magnets and integrated Hall sensors for precise rotor position detection. With a Nominal Current of 24.6A and Nominal Output Power of 1044W, this motor offers exceptional efficiency, dynamic acceleration, and a wide speed range. Constructed to meet rigorous industry standards, including IP65 Ingress Protection, UL certification, and premium efficiency ratings, it ensures long-term reliability and optimal performance. Combined with control electronics, gearboxes, and encoders, this modular motor system provides a versatile solution for various applications.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Demagnetisation Current
⥠95 A
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
3550 W
Technical Specs Maximum Torque
11 N·m
Technical Specs Nominal Current
24.6 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
1044 W
Technical Specs Nominal Speed
3800 rpm
Technical Specs Nominal Torque
2.61 N·m
Technical Specs Note For Demagnetisation Current
ÏR = 20ºC
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Current
ÏR = 20ºC
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Stall Torque
ÏR = 20ºC
Technical Specs Note For Starting Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Current
2 A
Technical Specs No Load Speed
4120 rpm
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Stall Torque
41 N·m
Technical Specs Starting Current
873 A
Technical Specs Terminal Inductance
0.150 mH
Technical Specs Terminal Resistance
0.055 Ω
Technical Specs Torque Constant
0.1156 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
