Dunkermotoren BG Series EC Motor with Integrated Hall Sensors
Dunkermotoren BG Series EC Motor with Integrated Hall Sensors
SKU:BGS-b3f7d7
Experience dynamic power and efficiency with Dunkermotoren's BG Series EC Motor. Compliant & reliable for institutional needs.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren BG Series EC Motor with Integrated Hall Sensors
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series EC Motor with Integrated Hall Sensors
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

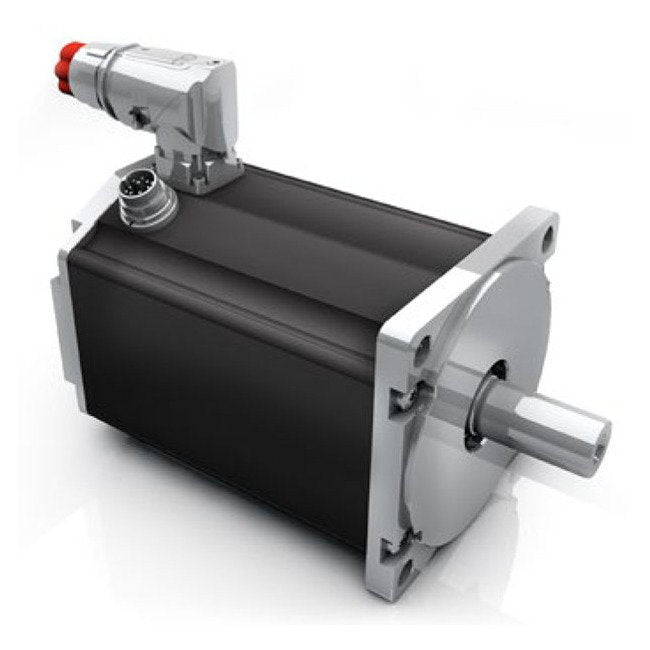

The Dunkermotoren BG Series EC Motor is a highly dynamic and efficient 3-phase brushless DC motor with integrated Hall sensors for precise rotor position detection. With a nominal current of 325V and a peak power output of 4400W, this motor offers exceptional performance and reliability. Compliant with industry standards like CQC and UL, it features a robust design, optimized control characteristics, and a wide speed range. Ideal for institutional applications requiring high power density and maintenance-free operation.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsPremium efficiencyVibration resistanceEPLAN Data Portal
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Feedback Integrated
24 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Nominal Direct Current Dc Voltage
325 V
Technical Specs Note For Nominal Direct Current Dc Voltage
Preliminary data
Technical Specs Optional Feedback Integrated
4096 cycles/rev
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
On Request
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
2830 g/cm²
Technical Specs Weight Of Motor
6.7 kg
