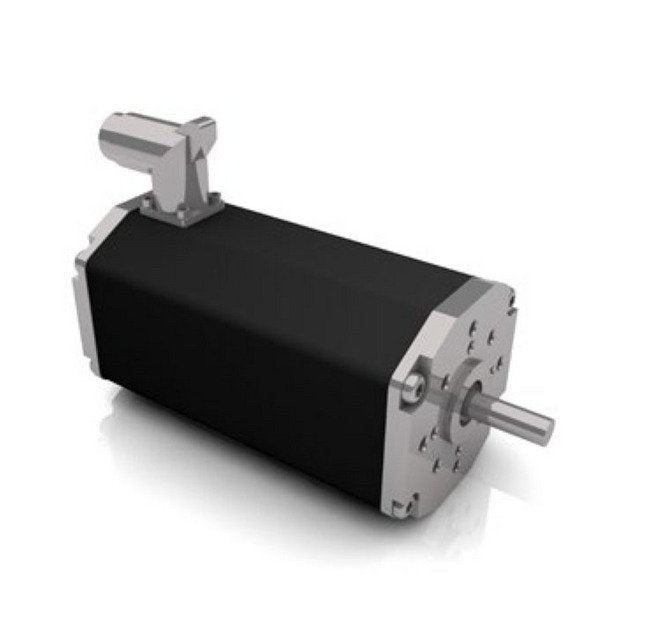

Dunkermotoren BG Series Hall Sensor Brushless DC Motor
Dunkermotoren BG Series Hall Sensor Brushless DC Motor
SKU:BGS-1b1a33
Experience dynamic EC motor power with Dunkermotoren's BG Series Brushless DC Motor.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Hall Sensor Brushless DC Motor
$399.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Hall Sensor Brushless DC Motor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Brushless DC Motor with Integrated Hall Sensors is a highly dynamic 3-phase EC motor designed for industrial applications. With a nominal current of 2.23 A and a nominal output power of 181 W, this motor offers exceptional performance and efficiency. It features neodymium magnets, high overload capability, and maintenance-free operation, making it a reliable and long-lasting solution. Compliant with industry standards such as IP65 protection and UL certification, this motor ensures top-quality performance and durability.
Product Specifications
Additional Information Additional Information
Combined in a modular system with control electronics, gearboxes, brakes and encoders, these electronically commutated DC motors provide a flexible, adaptable, market-oriented solution.
Features Features
The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:Very long lifetimeHigh efficiencyHighly dynamic accelerationOptimized control characteristicsWide speed rangeHigh power densityMaintenance-freeRobust designHigh overload capabilityLow moment of inertiaMotor insulation - Class ENeodymium magnetsHigh efficiencyVibration resistance
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
181 W
Technical Specs Feedback Integrated
30 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
339 W
Technical Specs Maximum Torque
1.70 N·m
Technical Specs Nominal Current
2.23 A
Technical Specs Nominal Direct Current Dc Voltage
110 V
Technical Specs Nominal Output Power
181 W
Technical Specs Nominal Speed
3440 rpm
Technical Specs Nominal Torque
0.502 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
5790 rpm
Technical Specs Peak Power
355 W
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
172 g/cm²
Technical Specs Torque Constant
0.309 N·mA-1
Technical Specs Weight Of Motor
1.80 kg
