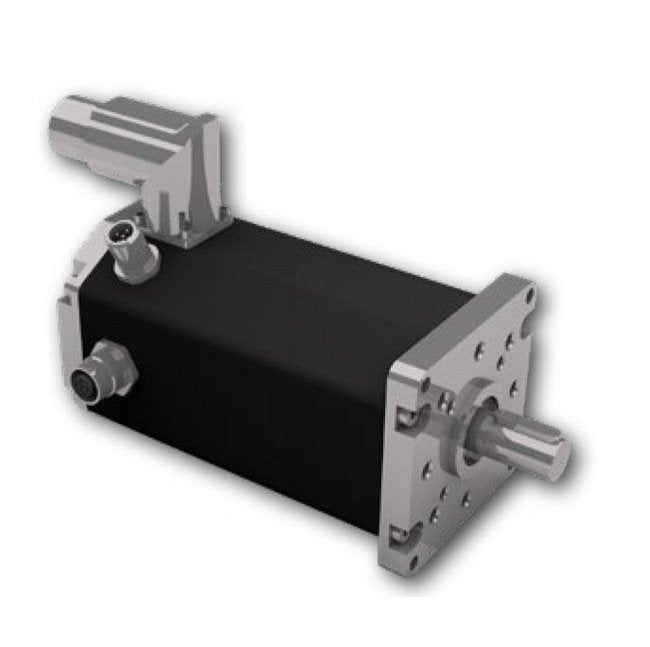

Dunkermotoren BG Series Integrated Brushless DC Motor
Dunkermotoren BG Series Integrated Brushless DC Motor
SKU:BGS-3d9725
Experience precision and power with the Dunkermotoren BG Series Integrated Brushless DC Motor.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren BG Series Integrated Brushless DC Motor
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BG Series Integrated Brushless DC Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BG Series Integrated Brushless DC Motor offers precise control with CANopen or standalone operation, high positioning accuracy, and excellent control characteristics. With a nominal current of 11.5A and a nominal output power of 497W, this motor guarantees reliability and performance. It features field-oriented control, integrated control electronics, and programmability, making it ideal for various applications. Compliant with industry standards such as CE, UL, and IP65 protection, this motor ensures high efficiency, overload protection, and smart diagnostics for optimized functionality.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsCANopen version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelVibration resistanceBallast circuitHigh efficiencySinusoidal vector controlS-RampeInterpolationSSI version availableSafe torque off version availableOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
560 W
Technical Specs Direct Current Dc Voltage Range
3 to 58 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
1026 W
Technical Specs Maximum Torque
5.21 N·m
Technical Specs Nominal Current
11.5 A
Technical Specs Nominal Direct Current Dc Voltage
48 V
Technical Specs Nominal Output Power
497 W
Technical Specs Nominal Speed
4020 rpm
Technical Specs Nominal Torque
1.181 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
4390 rpm
Technical Specs Peak Current
35.9 A
Technical Specs Peak Power
1700 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
437 g/cm²
Technical Specs Torque Constant
0.129 N·mA-1
Technical Specs Weight Of Motor
2.5 kg
