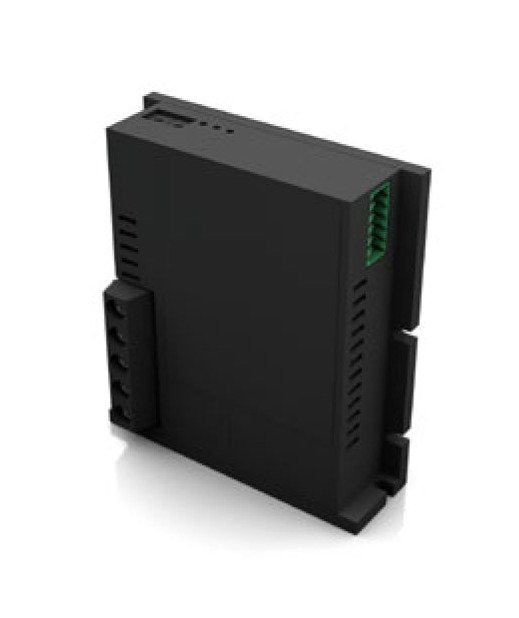

The Dunkermotoren BGE Series 160 Ampere Peak Output Controller is a compact 4-quadrant controller designed for precision control of both brush-type and brushless DC motors. Featuring a CANopen interface with safety torque off function, this controller offers advanced functionalities such as IO mode, speed mode, current mode, positioning, and more. With external microprocessor unit integration and compatibility with various motor types, this controller ensures efficient and reliable motor control for a wide range of applications. Additionally, it complies with European Conformity (CE), Underwriters Laboratories (UL), EN ISO 13849 safety standards, SIL=3, and IP20 protection class.
Product Specifications
Features Features
IO modeCANopen version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceBlock commutationDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableGalvanic insulated CAN BusBrake outputInterpolation
Technical Specs Ambient Temperature
0 to +70 ºC
Technical Specs Analog Input
2 (-10 to +10 Voltage (V))
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Root Mean Square Rms Output Current
60 A
Technical Specs Current Consumption At 24 Voltage V
70 mA
Technical Specs Digital Input
6
Technical Specs Digital Output
2
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Master Functionality Microprocessor Unit Mpu Int
External | Yes
Technical Specs Note For Continuous Output Current
40ºC 32 kHz PWM
Technical Specs Peak Output Current
160 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 60 V
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Relative Humidity
5 to 85 %
Technical Specs Safety Indices According To European Norm En 620
SIL=3
Technical Specs Safety Indices According To European Norm En Int
PL=e
Technical Specs Series
BGE
Technical Specs Weight
0.38 kg
