Dunkermotoren BGE 34A Peak Current Controller
Dunkermotoren BGE 34A Peak Current Controller
SKU:BGE-992b81
Achieve precise speed control and high reliability with the Dunkermotoren BGE 34A Peak Current Controller. Ideal for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dunkermotoren BGE 34A Peak Current Controller
$249.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE 34A Peak Current Controller
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

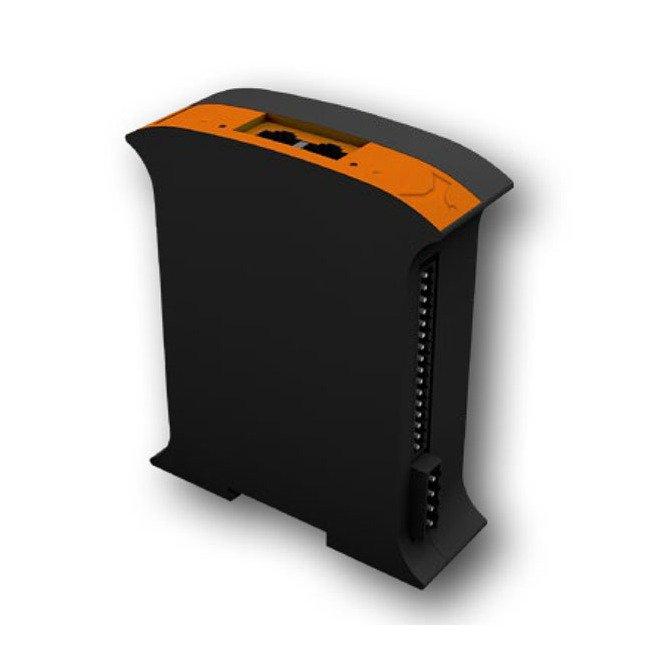

The Dunkermotoren BGE Series 34 Ampere Peak Current Controller is a versatile external controller designed for precise speed control and operational reliability. Featuring an integrated potentiometer for speed adjustment and various protection functions including low-voltage cut-off and stall protection, this controller ensures smooth and efficient motor performance. With a peak current of 34A and compatible with operating DC voltage of 12 to 40V, it offers a speed range from 500 to 5000 rpm, meeting the demanding requirements of industrial applications.
Product Specifications
Features Features
IO modeSpeed modeBlock commutationDigital inputsDigital outputsAnalog inputs
Note Note
The connection between motor and electronics must be as short as possible. The maximum length of the connection cable should be not longer than 2m. For avoiding of any failures it is recommended to use a separated cable routing for phase and sensor.(Please note that, for the BGE 3004 A, the matching motor connector must also be ordered.)
Technical Specs Ambient Temperature
-10 to +40 ºC
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Current
4 A
Technical Specs Design
External
Technical Specs Note For Continuous Current
20ºC 32 kHz PWM
Technical Specs Operating Direct Current Dc Voltage
12 to 40 V
Technical Specs Peak Current
34 A
Technical Specs Product Availability
Preferred Series
Technical Specs Series
BGE
Technical Specs Voltage Range
11.2 to 44 V
Technical Specs Weight
0.04 kg
