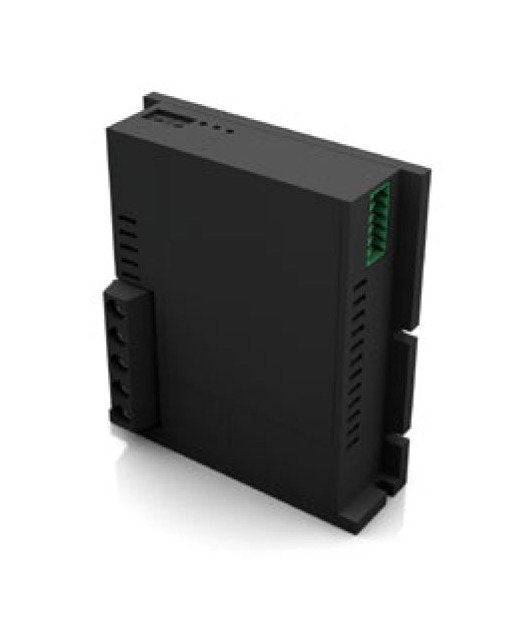

Dunkermotoren BGE Series 160A Peak Output Motor Controller
Dunkermotoren BGE Series 160A Peak Output Motor Controller
SKU:BGE-c10e4b
Experience precise motor control with Dunkermotoren BGE Series 160A Peak Output Controller.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Dunkermotoren BGE Series 160A Peak Output Motor Controller
$279.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE Series 160A Peak Output Motor Controller
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BGE Series 160 Ampere Peak Output Current Controller is a compact 4-quadrant controller suitable for controlling both brush-type and brushless DC motors. With a CANopen interface and safety torque off function, this controller guarantees efficient and safe motor operation. It offers a peak output current of 160 A and continuous RMS output current of 60 A. With a wide voltage range, multiple digital and analog inputs, and various operational modes available, the BGE Series Controller ensures precise motor control and versatility. Certified to meet European Conformity (CE) and Underwriters Laboratories (UL) standards.
Product Specifications
Features Features
IO modeCANopen version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceBlock commutationDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableGalvanic insulated CAN BusBrake outputInterpolation
Technical Specs Ambient Temperature
0 to +70 ºC
Technical Specs Analog Input
2 (-10 to +10 Voltage (V))
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Root Mean Square Rms Output Current
60 A
Technical Specs Current Consumption At 24 Voltage V
70 mA
Technical Specs Digital Input
6
Technical Specs Digital Output
2
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Master Functionality Microprocessor Unit Mpu Int
External | Yes
Technical Specs Note For Continuous Output Current
40ºC 32 kHz PWM
Technical Specs Peak Output Current
160 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 60 V
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Relative Humidity
5 to 85 %
Technical Specs Safety Indices According To European Norm En 620
SIL=3
Technical Specs Safety Indices According To European Norm En Int
PL=e
Technical Specs Series
BGE
Technical Specs Weight
0.38 kg
