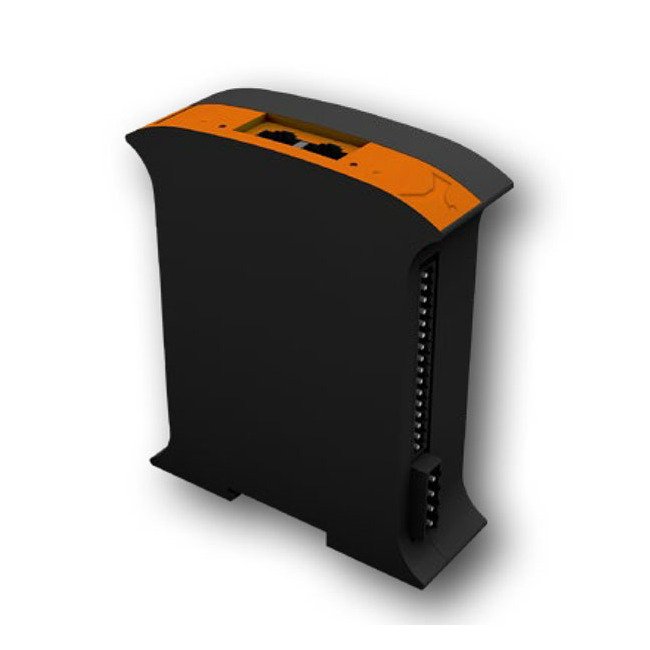

Dunkermotoren BGE Series 30A Peak Output Controller
Dunkermotoren BGE Series 30A Peak Output Controller
SKU:BGE-7b06a3
Versatile 4-quadrant controller for brushless & brushed DC motors, with CANopen interface & safety features. Ideal for precise motor control.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BGE Series 30A Peak Output Controller
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE Series 30A Peak Output Controller
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BGE Series 30 Ampere Peak Output Controller is a compact 4-quadrant controller designed for precise control of brushless and brushed DC motors up to 250W continuous power. With standard interfaces like CANopen and a safety function like Safe Torque Off, this controller offers versatile control options suitable for a variety of applications. Featuring free programmability, additional encoder and brake connections, and compliance with safety standards EN 61508/62061 and EN ISO 13849, this controller ensures safe and efficient motor control in both stand-alone and slave operation modes.
Product Specifications
Features Features
IO modeCANopen version availableRS485 version availableSpeed modeCurrent modePositioningService interfaceBlock commutationSinusoidal vector controlDigital inputs configurableDigital outputsAnalog inputsOscilloscope software availableSmart DiagnosticsSafe torque off version availableProgrammableDigital labelBrake outputInterpolationEPLAN Data Portal
Technical Specs Analog Input 10 To 10 Voltage V
1
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
~70 mA
Technical Specs Continuous Output Current At 24 Direct Current D
10 A
Technical Specs Continuous Output Current At 48 Direct Current D
6 A
Technical Specs Digital Input
6
Technical Specs Digital Output
3
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V

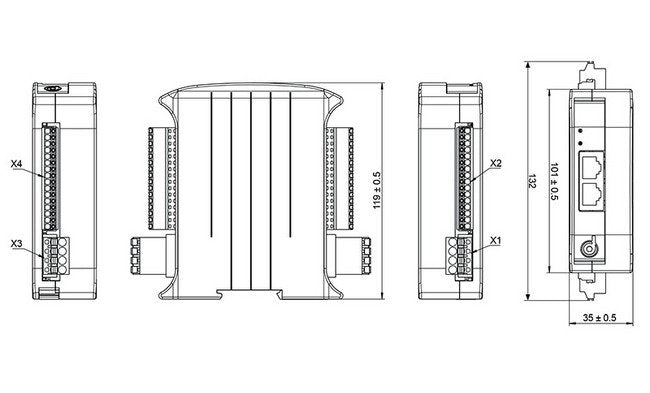

Technical Specs Height
120 mm
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Length
100 mm
Technical Specs Motor Feedback Inputs
Hall | Incremental
Technical Specs Operation Modes
Slave (CO), Stand-Alone (I/O)
Technical Specs Peak Output Current
30 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 55 V
Technical Specs Product Availability
Standard Product
Technical Specs Safety Functions
Safe Torque Off (STO)
Technical Specs Safety Indicators
EN 61508/62061: SIL 2 | EN ISO 13849: PL d
Technical Specs Series
BGE
Technical Specs Standard Interfaces
CANopen (DSP402)
Technical Specs Weight
0.17 kg
Technical Specs Width
35 mm
