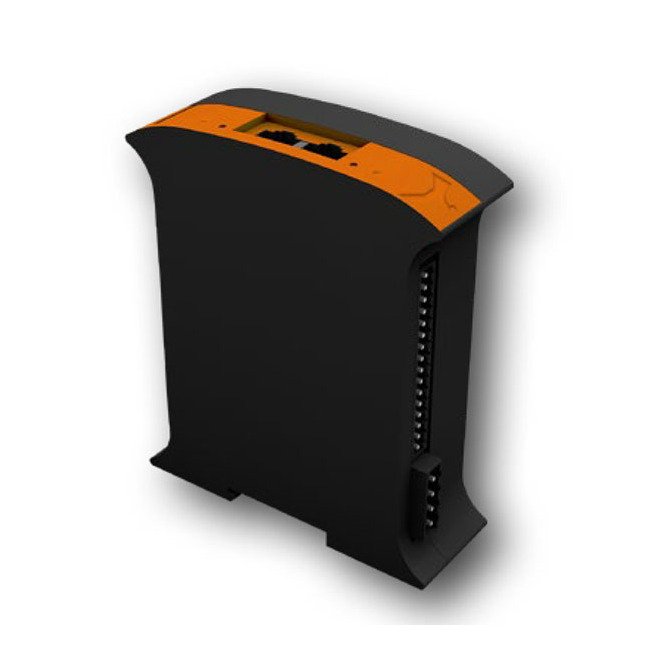

Dunkermotoren BGE Series 30A Peak Output Current Controller
Dunkermotoren BGE Series 30A Peak Output Current Controller
SKU:BGE-0f807b
Enhance motor control with Dunkermotoren BGE Series 30A Peak Output Current Controller's advanced safety and programmability features.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BGE Series 30A Peak Output Current Controller
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE Series 30A Peak Output Current Controller
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BGE Series 30 Ampere Peak Output Current Controller is a compact and versatile 4-quadrant controller designed for precise control of brushless and brushed DC motors up to 250W continuous output power. With free programmability and advanced safety features like Safe Torque Off (STO), this controller ensures efficient and secure motor operation. It offers compatibility with various communication protocols such as Profinet, EtherNet/IP, and EtherCAT, making it adaptable to diverse industrial environments. The controller's industry-leading features include digital inputs/outputs, analog inputs, smart diagnostics, and compliance with stringent safety standards like SIL 2 and PL d.
Product Specifications
Features Features
IO modeProfinet version availableEtherNet/IP version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceBlock commutationSinusoidal vector controlDigital inputs configurableDigital outputsAnalog inputsOscilloscope software availableSmart DiagnosticsSafe torque off version availableProgrammableDigital labelBrake outputInterpolationEPLAN Data Portal
Technical Specs Analog Input 10 To 10 Voltage V
1
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
70 mA
Technical Specs Continuous Output Current At 24 Direct Current D
10 A
Technical Specs Continuous Output Current At 48 Direct Current D
6 A
Technical Specs Digital Input
6
Technical Specs Digital Output
3
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Height
120 mm
Technical Specs Industry Standardscertifications
Underwriters Laboratories (UL)
Technical Specs Length
100 mm
Technical Specs Motor Feedback Inputs
Hall | Incremental
Technical Specs Operation Modes
Slave
Technical Specs Peak Output Current
30 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 55 V
Technical Specs Safety Functions
Safe Torque Off (STO)
Technical Specs Safety Indicators
EN 61508/62061: SIL 2 | EN ISO 13849: PL d
Technical Specs Series
BGE
Technical Specs Weight
0.17 kg
Technical Specs Width
35 mm
