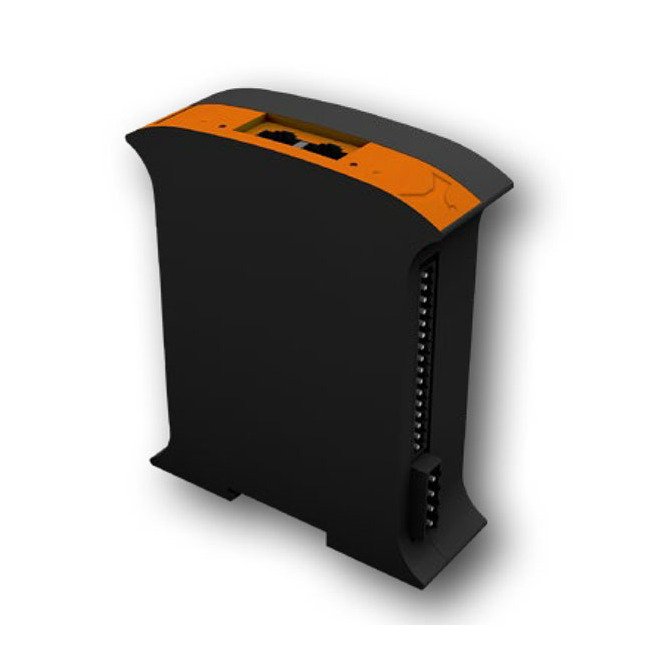

Dunkermotoren BGE Series 34A Peak Current Controller
Dunkermotoren BGE Series 34A Peak Current Controller
SKU:BGE-117576
Achieve precise speed control with Dunkermotoren BGE Series 34A Peak Current Controller. Ideal for industrial automation, ensuring reliability and efficiency.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Dunkermotoren BGE Series 34A Peak Current Controller
$179.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE Series 34A Peak Current Controller
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BGE Series 34A Peak Current Controller is an integral part of industrial automation, offering precise speed control from 500 to 5000 rpm with various protection functions for optimal operational reliability. With features like IO mode, speed mode, and multiple input options, this controller ensures smooth and efficient motor operation. Designed for durability and performance, this controller is ideal for applications where accuracy and safety are paramount.
Product Specifications
Features Features
IO modeSpeed modeBlock commutationDigital inputsDigital outputsAnalog inputs
Note Note
The connection between motor and electronics must be as short as possible. The maximum length of the connection cable should be not longer than 2m. For avoiding of any failures it is recommended to use a separated cable routing for phase and sensor.(Please note that, for the BGE 3004 A, the matching motor connector must also be ordered.)
Technical Specs Ambient Temperature
-10 to +40 ºC
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Current
4 A
Technical Specs Design
Attached
Technical Specs Note For Continuous Current
20ºC 32 kHz PWM
Technical Specs Operating Direct Current Dc Voltage
12 to 40 V
Technical Specs Peak Current
34 A
Technical Specs Product Availability
Preferred Series
Technical Specs Series
BGE
Technical Specs Voltage Range
11.2 to 44 V
Technical Specs Weight
0.04 kg
