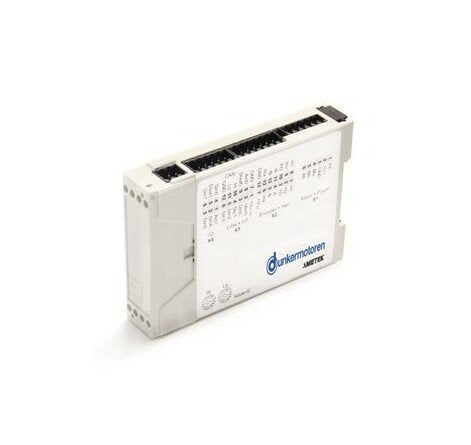

Dunkermotoren BGE Series 50A Peak Output DC Motor Controller
Dunkermotoren BGE Series 50A Peak Output DC Motor Controller
SKU:BGE-481235
Compact 4-quadrant DC motor controller with CANopen interface, ideal for precise motor control in industrial settings.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dunkermotoren BGE Series 50A Peak Output DC Motor Controller
$349.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren BGE Series 50A Peak Output DC Motor Controller
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren BGE Series 50 Ampere Peak Output Current Controller is a compact 4-quadrant controller designed for precise control of both brushed and brushless DC motors. Featuring a CANopen interface with Device profile DSP402 and Protocol DS301, this controller offers versatility and seamless integration in industrial applications. With optional heat sinks for higher continuous currents, it ensures reliable performance. The controller meets European Conformity (CE) standards for quality and safety, making it ideal for institutional and government procurement needs.
Product Specifications
Features Features
IO modeCANopen version availableSpeed modeCurrent modePositioningService interfaceBlock commutationDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableDigital labelBrake outputInterpolation
Technical Specs Ambient Temperature
0 to +70 ºC
Technical Specs Analog Input
2 (-10 to +10 Voltage (V))
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Output Current At 48 Voltage V
15 A
Technical Specs Digital Input
8
Technical Specs Digital Output
2
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Master Functionality Microprocessor Unit Mpu Int
External | Yes
Technical Specs Note For Continuous Output Current
40ºC 32 kHz PWM
Technical Specs Peak Output Current
50 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 60 V
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Relative Humidity
5 to 85 %
Technical Specs Series
BGE
Technical Specs Current Consumption At 24 Voltage V
60 mA
Technical Specs Weight
0.31 kg
