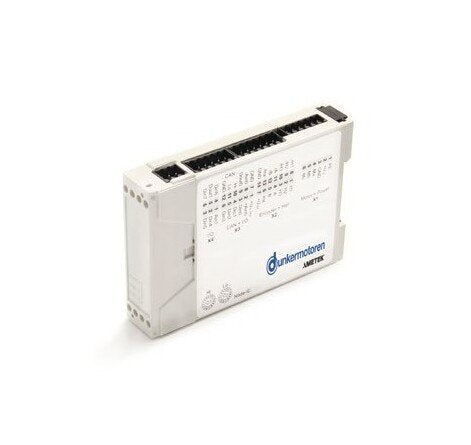

The Dunkermotoren BGE Series 50 Ampere Peak Output Current Controller is a highly compact 4-quadrant controller designed to efficiently manage both brushed and brushless DC motors. With a CANopen interface and attached or integrated incremental encoder, this controller offers advanced control capabilities. It features optional heat sinks for increased continuous currents, ensuring optimal performance and longevity. Meeting European Conformity (CE) standards, this controller excels in reliability and functionality, making it an ideal choice for diverse institutional and government applications.
Product Specifications
Features Features
IO modeCANopen version availableSpeed modeCurrent modePositioningService interfaceBlock commutationDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableDigital labelBrake outputInterpolation
Technical Specs Ambient Temperature
0 to +70 ºC
Technical Specs Analog Input
2 (-10 to +10 Voltage (V))
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Output Current At 48 Voltage V
10 A
Technical Specs Digital Input
8
Technical Specs Digital Output
2
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Master Functionality Microprocessor Unit Mpu Int
External | Yes
Technical Specs Note For Continuous Output Current
40ºC 32 kHz PWM
Technical Specs Peak Output Current
50 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 60 V
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Relative Humidity
5 to 85 %
Technical Specs Series
BGE
Technical Specs Current Consumption At 24 Voltage V
60 mA
Technical Specs Weight
0.31 kg
