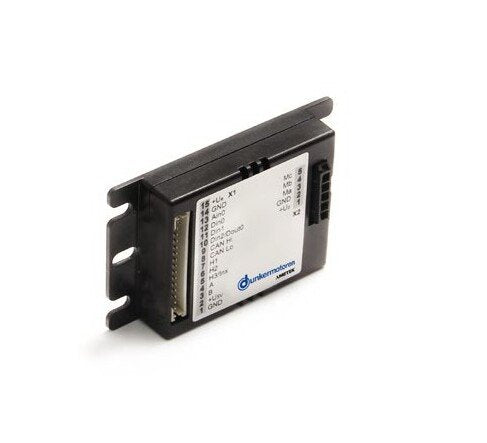

The Dunkermotoren BGE Series 15 Ampere Peak Output Current Controller is a versatile and compact 4-quadrant controller designed to efficiently control brushed and brushless DC motors. With a CANopen interface and clocking at 200 kHz, this controller is ideal for ironless motors like the BGA 22. It features a peak output current of 15 A, continuous RMS output current of 5 A, and various operational modes including IO, CANopen, speed, current, and positioning. Additionally, it meets European Conformity (CE) standards and offers protection class IP20 for reliable performance in various industrial applications.
Product Specifications
Features Features
IO modeCANopen version availableSpeed modeCurrent modePositioningService interfaceBlock commutationDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableDigital labelBrake outputInterpolation
Technical Specs Ambient Temperature
0 to +70 ºC
Technical Specs Analog Input
1 (-10 to +10 Voltage (V))
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Root Mean Square Rms Output Current
5 A
Technical Specs Digital Input
3
Technical Specs Digital Output
1
Technical Specs Electronic Supply Nominal Direct Current Dc Volt
9 to 30 V
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Master Functionality Microprocessor Unit Mpu Int
External | Yes
Technical Specs Note For Continuous Output Current
40ºC 32 kHz PWM
Technical Specs Peak Output Current
15 A
Technical Specs Power Supply Nominal Direct Current Dc Voltage
9 to 60 V
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP20)
Technical Specs Relative Humidity
5 to 85 %
Technical Specs Series
BGE
Technical Specs Current Consumption At 24 Voltage V
30 mA
Technical Specs Weight
0.03 kg
