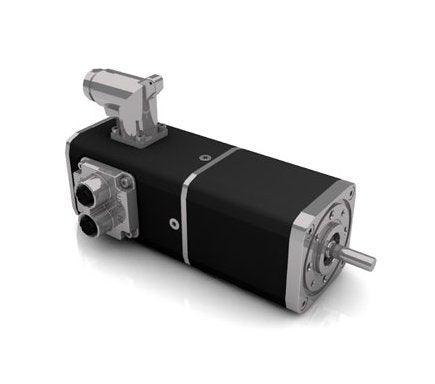

Dunkermotoren Brushless DC Motor - BG Series 48.5A, 1040W
Dunkermotoren Brushless DC Motor - BG Series 48.5A, 1040W
SKU:BGS-fe32ed
Powerful Dunkermotoren BG Series Brushless DC Motor for precise speed and positioning control in industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Dunkermotoren Brushless DC Motor - BG Series 48.5A, 1040W
$899.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren Brushless DC Motor - BG Series 48.5A, 1040W
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BG Series Brushless DC Motor by Dunkermotoren offers a Nominal Direct Current Voltage of 24V, Nominal Current of 48.5A, and Nominal Output Power of 1040W. With integrated control electronics, this motor provides Speed, Positioning, and Current control operations. It features high IP protection, inherent overload protection, and Smart Diagnostics for efficient monitoring. Compliant with industry standards such as China Quality Certification (CQC), European Conformity (CE), and Underwriters Laboratories (UL), this motor is ideal for diverse applications requiring reliability and high performance.
Product Specifications
Features Features
Speed- positioning- and current control operationCan be combined with high resolution encoders, brakes and gearboxes in the modular systemControl through bus or I/Os or stand-alone operationHigh IP protection against water or contaminationInherent overload protectionProgrammable with Motion CodeMonitoring with Smart DiagnosticsProfinet version availableEtherCAT version availableEtherNet/IP version availableIO modeSpeed modeCurrent modePositioningDigital inputs configurableAnalog inputsDigital outputsBrake outputProgrammableService interfaceOscilloscope softwareSmart DiagnosticsDigital labelOperating hoursHigh efficiencySinusoidal vector controlInterpolationSSI version availableSafe torque off versionS-RampeOperating hours
Technical Specs Brands
Dunkermotoren
Technical Specs Continous Power
1100 W
Technical Specs Direct Current Dc Voltage Range
5 to 52 V
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
China Quality Certification (CQC) | European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Maximum Output Power
2920 W
Technical Specs Maximum Torque
9.24 N·m
Technical Specs Nominal Current
48.5 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Nominal Output Power
1040 W
Technical Specs Nominal Speed
3915 rpm
Technical Specs Nominal Torque
2.54 N·m
Technical Specs Note For Maximum Torque
ÏR = 20ºC
Technical Specs Note For Nominal Current
ÎÏw = 100 K
Technical Specs Note For Nominal Output Power
ÏR = 20ºC
Technical Specs Note For Nominal Speed
ÎÏw = 100 K
Technical Specs Note For Nominal Torque
ÎÏw = 100 K
Technical Specs Note For No Load Speed
ÎÏw = 100 K
Technical Specs Note For Peak Current
ÏR = 20ºC
Technical Specs Note For Torque Constant
At nominal point
Technical Specs No Load Speed
3900 rpm
Technical Specs Peak Current
147 A
Technical Specs Peak Power
4400 W
Technical Specs Product Availability
Preferred Series
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Rotor Inertia
1890 g/cm²
Technical Specs Torque Constant
0.058 N·mA-1
Technical Specs Weight Of Motor
5.1 kg
