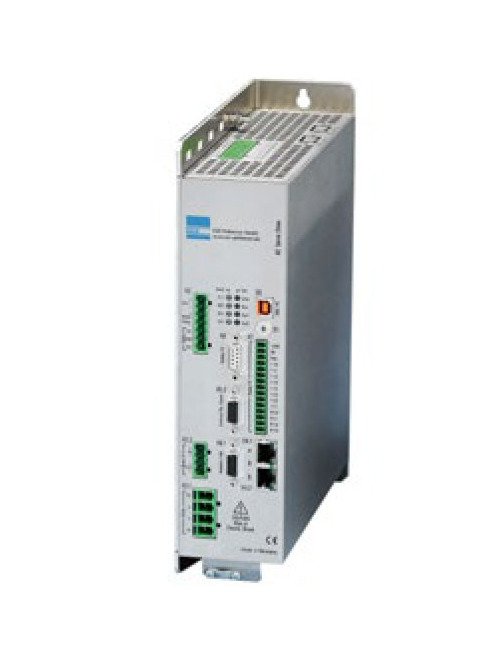

Dunkermotoren DME Series Digital Servo Controller
Dunkermotoren DME Series Digital Servo Controller
SKU:DME-055b6e
High-performance Dunkermotoren DME Series servo controller with 22A peak output current, EtherCAT/USB interfaces, and advanced safety features.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Dunkermotoren DME Series Digital Servo Controller
$699.99
Quantity: 1
Claim Your Seller Account
Dunkermotoren DME Series Digital Servo Controller
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dunkermotoren DME Series 22A Digital Servo Controller is designed for precise motor control, offering peak output current of 22A and continuous RMS output current of 8A. With industry-leading efficiency of 97.8%, this controller ensures reliable performance. It features various operation modes including slave mode, standard interfaces such as EtherCAT and USB, and versatile motor feedback inputs. The integrated safety functions, configuration software, and compatibility with multiple motor types make it a versatile solution for industrial applications.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuit
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
8 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.8 %
Technical Specs Frequency
50 to 60 Hz
Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
560 to 680 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
3 x 400 to 480 V
Technical Specs Operation Modes
Slave
Technical Specs Peak Output Current
22 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
EtherCAT | Universal Serial Bus (USB)
Technical Specs Weight
2.8 kg
Technical Specs Width
275 mm
