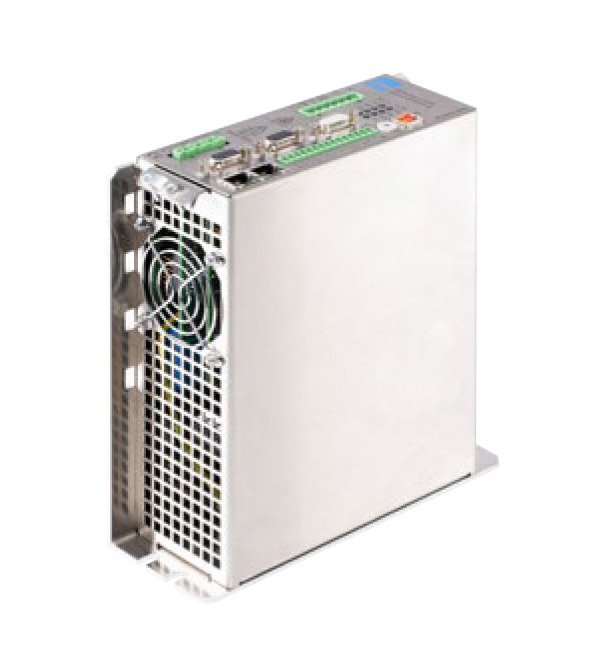

The Dunkermotoren DME Series 17A Digital Servo Controller is designed for precise control in servo applications. With a peak output current of 17A, it supports slave operation mode and features Profinet Input/Output (I/O) and Universal Serial Bus (USB) interfaces. The controller ensures safety with a Safety Torque Off function and offers feedback inputs for linear encoders and motor encoders. It is programmable, efficient, and complies with European Conformity (CE) standards for safety and reliability.
Product Specifications
Features Features
IO modeCANopen version availableProfinet version availableEtherCAT version availableSpeed modeCurrent modePositioningService interfaceSinusoidal vector controlDigital inputsDigital outputsOscilloscope software availableCondition monitoringSafe torque off version availableProgrammableBrake outputInterpolationBallast circuitEPLAN Data Portal
Note Note
Safety indices according to EN ISO 13849Safety indices according to EN 62061/EN 61508
Technical Specs Brands
Dunkermotoren
Technical Specs Continuous Consumption Electronic
0.4 A
Technical Specs Continuous Root Mean Square Rms Output Current
4 A
Technical Specs Digital Input
8
Technical Specs Digital Output
4
Technical Specs Efficiency At Rated Operation
97.2 %
Technical Specs Frequency
50 to 60 Hz

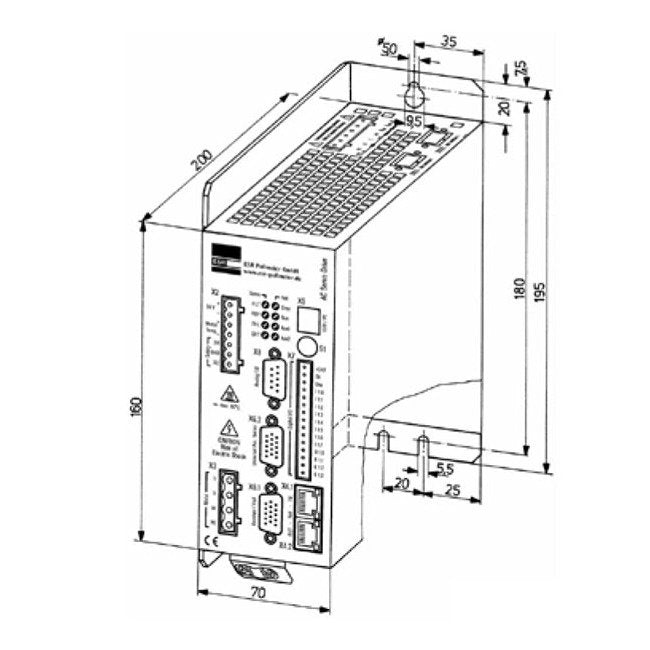

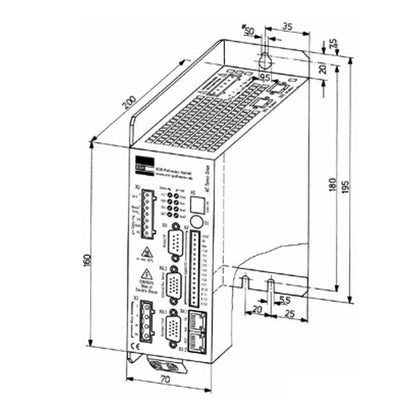

Technical Specs Height
200 mm
Technical Specs Industry Standardscertifications
European Conformity (CE)
Technical Specs Length
70 mm
Technical Specs Motor Feedback For Bg Motors
Magnetic Rotary (MR) Encoder
Technical Specs Motor Feedback Inputs For Servo Tube
Bi-Directional Serial Synchronous Interface (BISS) | Sin/Cos (1Vss) | Transistor-Transistor Logic (TTL)
Technical Specs Nominal Direct Current Dc Bus Voltage
325 V
Technical Specs Nominal Electronic Supply Direct Current Dc Volt
24 V
Technical Specs Nominal Power Supply Alternating Current Ac Volt
230 V
Technical Specs Operation Modes
Slave
Technical Specs Peak Output Current
17 A
Technical Specs Series
DME
Technical Specs Standard Interfaces
Profinet Input/Output (I/O) | Universal Serial Bus (USB)
Technical Specs Weight
1.6 kg
Technical Specs Width
195 mm
